Display module categories
Eight product families, all made in the same Shenzhen plant. Every model page carries the full electrical and mechanical specification, not just a photo.
TFT LCD Display Modules
Colour TFT and IPS modules from 0.96" to 15.6" with MCU, SPI, RGB, LVDS and MIPI interfaces.
LCD Touch Screen Modules
TFT modules with bonded capacitive (CTP) or resistive touch panels for industrial HMI.
Smart Serial UART LCD Modules
Display modules with on-board controller and UART command set - including BMS protocol screens.
OLED Display Modules
Monochrome and colour OLED modules from 0.49" to 2.42" with I2C, SPI and parallel interfaces.
Graphic LCD Modules
Monochrome dot-matrix graphic modules - 128x64, 192x64, 240x128 - COG and COB, FSTN and STN, low power.
Character LCD Modules
Alphanumeric modules 8x2 to 20x4 with 6800, I2C and SPI interfaces and multi-colour backlight.
Segment LCD Displays
Fully custom TN, HTN and VATN segment glass for meters, appliances and instruments.
Round LCD Displays
Circular TFT panels 1.28" and 3.4" for wearables, smart knobs and instrument clusters.
Find a display by specification
Filter the 102 fully specified models on this site. Nothing here is a stock photo — every row links to the full electrical and mechanical specification.
102 of 102 models shown
| Model | Size | Resolution | Interface | Brightness | Operating temp | |
|---|---|---|---|---|---|---|
| JM-PT143-01 | 15.6" | 1920×1080 | EDP 1.2 | 250 cd/m² | on request | |
| JM-PT074 | 10.1" | 1024×600 | RGB | 400 cd/m² | -20°C to +70°C | |
| JM-PT125-00 | 10.1" | 800×1280 | MIPI | 500 cd/m² | -20°C to +60°C | |
| JM-PT134-01 | 10.1" | 800×1280 | MIPI | 550 cd/m² | -10°C to +50°C | |
| JM-PT134-02 | 10.1" | 800×1280 | MIPI | 500 cd/m² | -10°C to +50°C | |
| JM-PT144-00 | 9" | 1024×600 | RGB-stripe | 300 cd/m² | -20°C to +70°C | |
| JM- PT114- TI1024600 CML070 | 7" | 1024×600 | 4-lane MIPI | 400 cd/m² | -20°C to +70°C | |
| JM-GD814 | 7" | 1024×600 | HDMI | 300 cd/m² | -10°C to +70°C | |
| JM-GD824-00 | 7" | 1024×600 | RGB/TTL | 350 cd/m² | -10°C to +60°C | |
| JM-PT034 | 7" | 1024×600 | RGB Vertical Stripe | 300 cd/m² | -10°C to +70°C | |
| JM-PT042-TT800480CRL070 | 7" | 800×480 | TTL | 500 cd/m² | -20°C to +70°C | |
| JM-PT091 | 7" | 1024×600 | RGB | 450 cd/m² | -10°C to +50°C | |
| JM-PT091-00 | 7" | 1024×600 | RGB/TTL | 450 cd/m² | -10°C to +50°C | |
| JM-PT098-00 | 7" | 800×480 | RGB 8bit | 450 cd/m² | -20°C to +70°C | |
| JM-PT121-01 | 7" | 800×480 | RGB | 250 cd/m² | on request | |
| JM-PT135-00 | 7" | 1024×600 | RGB | 350 cd/m² | -10°C to +60°C | |
| JM-PT135-01 | 7" | 1024×600 | RGB | 500 cd/m² | -10°C to +60°C | |
| JM-ZH601-00 | 7" | 800×480 | USB/RS232/RS485 | 350 cd/m² | on request | |
| JM320240A | 5.7" | 320×240 | - | High Brightness | -20°C to +70°C | |
| JM240128C | 5.2" | 240×128 | Emulator | 200 cd/m² | -20°C to +70°C | |
| JM-PT069 | 5" | 800×480 | Parallel RGB 24-bit | 500 cd/m² | -20°C to +70°C | |
| JM-PT128-00 | 5" | 480×854 | MIPI | 300 cd/m² | -20°C to +70°C | |
| JM-PT136-00 | 5" | 800×480 | Parallel RGB 8-bit | 500 cd/m² | -20°C to +70°C | |
| JM-TFT050BI52 | 5" | 800×480 | RGB | 500 cd/m² | -20°C to +70°C | |
| JM240128C09-GSBLWNG5 | 5.0" | 240×128 | 8080-8bit | 200 cd/m² | -20°C to +70°C | |
| JMT050WQ3TNN-01 | 5" | 480×272 | Parallel RGB 24-Bit | 500 cd/m² | -20°C to +70°C | |
| JM-PT097 | 4.45" | 480×854 | MIPI | 400 cd/m² | -20°C to +70°C | |
| JM-LH018-00 | 4.3" | 800×480 | UART Serial Port | 250 cd/m² | -20°C to +70°C | |
| JM-PT042 | 4.3" | 800×480 | RGB 24BIT | 260 cd/m² | -20°C to +70°C | |
| JM-PT089 | 4.3" | 800×480 | RGB 24BIT | 280 cd/m² | -20°C to +70°C | |
| JM-PT104-00 | 4.3" | 480×272 | RGB | 250 cd/m² | -20°C to +70°C | |
| JM-PT105-01 | 4.3" | 480×272 | RGB 8BIT | - | -20°C to +70°C | |
| JM-TFT043BI051 | 4.3" | 480×272 | RGB | 250 cd/m² | -20°C to +70°C | |
| JM19264C | 4.3" | 192×64 | - | 200 cd/m² | -20°C to +70°C | |
| JM-PT154-02 | 4.0" | 480×800 | RGB/TTL | 300 cd/m² | -20°C to +70°C | |
| JM12864G | 3.8" | 128×64 | - | 220 cd/m² | -20°C to +70°C | |
| JM-LH011-TI320240NUL035 | 3.5" | 320×240 | UART/RS485/CAN3 | 450 cd/m² | -20°C to +70°C | |
| JM-PT048-01 | 3.5" | 320×480 | RGB/MCU | 250 cd/m² | -20°C to +70°C | |
| JM-PT048-02 | 3.5" | 320×480 | RGB | 250 cd/m² | -20°C to +70°C | |
| JM-PT075 | 3.5" | 240×320 | 8BIT | 300 cd/m² | -20°C to +70°C | |
| JM-PT113 | 3.5" | 320×240 | RGB 24BIT | 350 cd/m² | -20°C to +70°C | |
| JM-PT106-00 | 3.4" | 480×272 | RGB | 300 cd/m² | -20°C to +70°C | |
| JM-2004C-00 | 3.2" | 20×4 | - | 100 cd/m² | -20°C to +70°C | |
| JM-PL051-LG12864 | 3.2" | 128×64 | 6800/8080/4-LINE | 150 cd/m² | -20°C to +70°C | |
| JM-PT137-00 | 3.2" | 240×320 | SPI/MCU | 300 cd/m² | -20°C to +70°C | |
| JM-TFT032B002 | 3.2" | 240×320 | SPI | 400 cd/m² | -10°C to +60°C | |
| JM-L12806404 | 3" | 128×64 | Parallel/Serial | 150 cd/m² | -20°C to +70°C | |
| JM-PL054-00 | 3" | 160×160 | 4bit SPI | 150 cd/m² | -40°C to +70°C | |
| JM-PT112 | 3" | 360×640 | MIPI/RGB | 450 cd/m² | -20°C to +70°C | |
| JM12864C08 | 3" | 128×64 | Serial/Parallel Port,SPI | 150 cd/m² | -20°C to +70°C | |
| JM240128C07 | 2.9" | 240×128 | Parallel/Serial | 200 cd/m² | -20°C to +70°C | |
| JM240160C02 | 2.9" | 240×160 | SPI | 150 cd/m² | -20°C to +70°C | |
| JM-LH017-00 | 2.8" | 240×320 | Serial Port | 200 cd/m² | -20°C to +70°C | |
| JM-PT033-01 | 2.8" | 240×320 | Emulator | 280 cd/m² | -20°C to +70°C | |
| JM-PT119-01 | 2.8" | 240×320 | 8-bit MCU | 600 cd/m² | -20°C to +70°C | |
| JM-T006 | 2.8" | 320×240 | RGB 24BIT | 350 cd/m² | -20°C to +70°C | |
| JM16096C02 | 2.5" | 160×96 | SPI4 | 150 cd/m² | -20°C to +70°C | |
| JM-P0159-00 | 2.42" | 128×64 | 6800/8080 INTERFACE | 120 cd/m² | -40°C to +70°C | |
| JM-GD819 | 2.4" | 240×320 | SPI | 200 cd/m² | -20°C to +70°C | |
| JM-PT090 | 2.4" | 240×320 | MCU | 350 cd/m² | -20°C to +70°C | |
| JM-PT095-00 | 2.4" | 240×320 | MCU Interface | 250 cd/m² | -20°C to +70°C | |
| JM-PT095-01 | 2.4" | 240×320 | SPI | 350 cd/m² | -20°C to +70°C | |
| JM-PT095-02 | 2.4" | 240×320 | 8-bit Parallel Interface (8080 MPU) | - | on request | |
| JM-PL042-LG19264 | 2" | 192×64 | STN | 150 cd/m² | -20°C to +70°C | |
| JM-PT086 | 2" | 240×320 | SPI | 250 cd/m² | -20°C to +70°C | |
| JM19264C03 | 2" | 192×64 | Parallel/Serial | 150 cd/m² | -20°C to +70°C | |
| JM-PT037 | 1.77" | 128×160 | 4-bit SPI | 230 cd/m² | -20°C to +70°C | |
| JM-PT037-01 | 1.77" | 128×160 | SPI | 200 cd/m² | -20°C to +70°C | |
| JM-PT077 | 1.77" | 128×160 | 8-bit Parallel Port | 300 cd/m² | -20°C to +70°C | |
| JM-PT130-00 | 1.77" | 128×160 | SPI | 250 cd/m² | -20°C to +70°C | |
| JM-PO139-01 | 1.54" | 128×64 | 6800/8080 Parallel, 4-wire SPI | - | -40°C to +85°C | |
| JM-PO150 | 1.54" | 128×64 | I 2C | - | -40°C to +70°C | |
| JM-PL024 | 1.5" | 128×32 | 4-line SPI | 200 cd/m² | -20°C to +70°C | |
| JM-PO128 | 1.46" | 128×128 | 8-bit For Parallel | - | -40°C to +70°C | |
| JM-PO139-01 | 1.3" | 128×64 | 4-wire Serial Interface | - | -40°C to +70°C | |
| JM-PO158-01 | 1.3" | 128×64 | 8-bit 68XX/80XX Parallel, 3/4-wire SPI | - | -40°C to +70°C | |
| JM-PT115-00 | 1.3" | 240×240 | RGB | 300 cd/m² | -20°C to +70°C | |
| JMP0121 | 1.3" | 128×64 | 6800/8080 INTERFACE | 120 cd/m² | -40°C to +70°C | |
| JM-PT106-00 | 1.28" | 240×240 | RGB | 350 cd/m² | -20°C to +70°C | |
| JM-PT149-00 | 1.14" | 135×240 | MCU 8BIT | 300 cd/m² | -20°C to +70°C | |
| JM-PO122-00 | 0.96" | 128×64 | 6800/8080 Interface, I2C | - | -40°C to +70°C | |
| JM-PO136 | 0.96" | 128×64 | IIC | - | -40°C to +70°C | |
| JM-PT052-TI80160NSL0096 | 0.96" | 80×160 | SPI 4 | 350 cd/m² | -20°C to +60°C | |
| JM-PT138-00 | 0.96" | 80×160 | SPI | 350 cd/m² | -20°C to +70°C | |
| JM-PO107 | 0.49" | 64×32 | Parallel/Serial | - | -40°C to +70°C | |
| JM-1602-06 | " | - | SPI Serial Port | 150 cd/m² | on request | |
| JM-GD815 | " | 1024×600 | RGB | 300 cd/m² | -10°C to +70°C | |
| JM-GD823-00 | " | 128×128 | SPI | 150 cd/m² | -20°C to +70°C | |
| JM-L12806405SGNSL-A0 | " | 128×64 | Parallel/Serial | 150 cd/m² | -20°C to +70°C | |
| JM-LH013-00 | " | 480×272 | UART | 250 cd/m² | -20°C to +70°C | |
| JM-PT042 | " | 800×480 | TTL | 500 cd/m² | -20°C to +70°C | |
| JM-PT127-01 | " | 240×320 | 4SPI | 250 cd/m² | -20°C to +70°C | |
| JM-ZH601-00 | " | 800×480 | USB/RS232/RS485 | 350 cd/m² | on request | |
| JM0802B | " | 8×2 | Emulator | 100 cd/m² | -20°C to +70°C | |
| JM12232B | " | 122×32 | - | 190 cd/m² | -20°C to +70°C | |
| JM1602A | " | 16×2 | - | 100 cd/m² | -20°C to +70°C | |
| JM1602M | " | 16×2 | - | 100 cd/m² | -20°C to +70°C | |
| JM19264C02 | " | 192×64 | Parallel/Serial | 200 cd/m² | -20°C to +70°C | |
| JM2002A | " | 20×2 | - | 100 cd/m² | -20°C to +70°C | |
| JM2004A | " | 20×4 | - | 100 cd/m² | -20°C to +70°C | |
| JM240128J-1 | " | 240×128 | - | 500 cd/m² | -20°C to +70°C | |
| JM24064A | " | 240×64 | - | 200 cd/m² | -20°C to +70°C |
No published model matches that combination. That does not mean we cannot build it — 188 models are in production and only the fully specified ones are listed here. Send the three values you just selected and we will tell you what exists.
Ask an engineerSelected models
One representative model per family. Full catalogue on the products page.

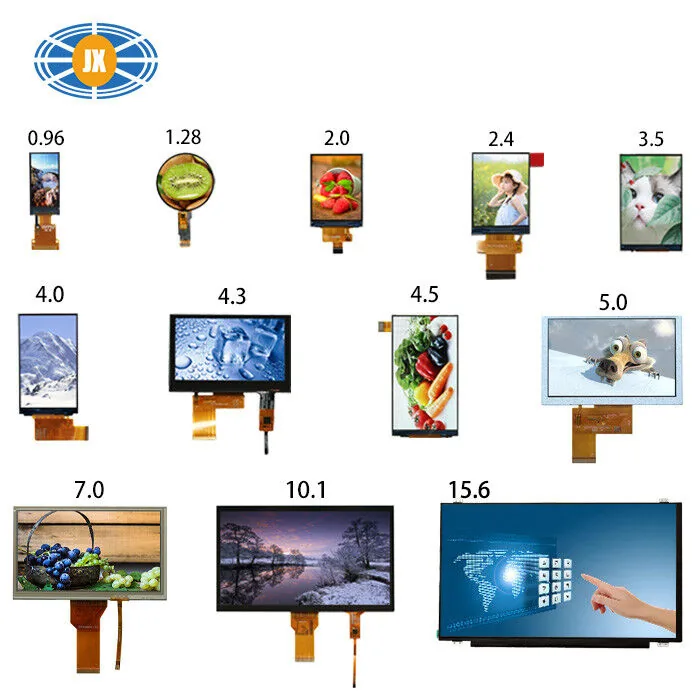

0.96 Inch - 15.6 Inch Custom LCD Display Multiple TFT Display Screen
Multiple TFT display customization

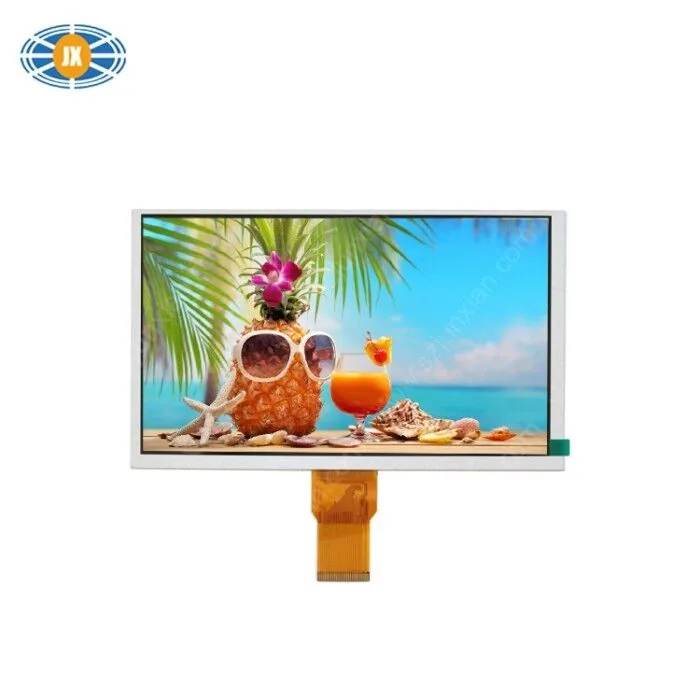

9 Inch TFT Display 1024x600 Touch Screen LCD Monitor For Industrial / Automotive
JM-PT144-00

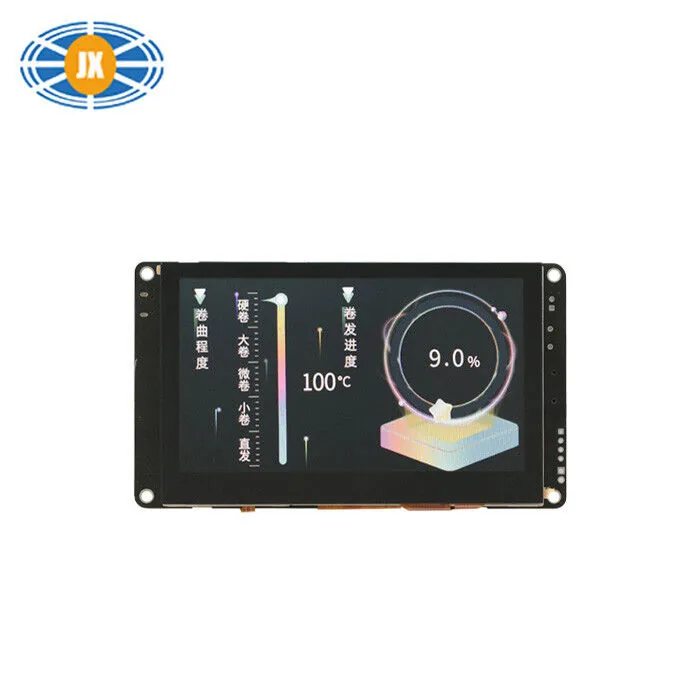

250cd/m2 Serial Port Display 480x272 Versatile Intuitive 4.3 TFT LCD Monitor
JM-LH013-00

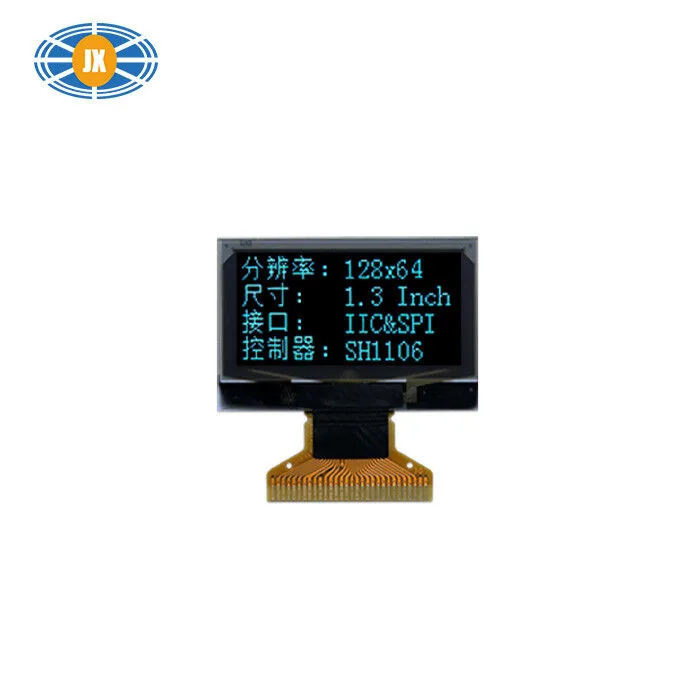

1.3 Inch OLED LCD Display High Res Versatile Interface OLED Screen Module With SH1116 Driven
JMP0121

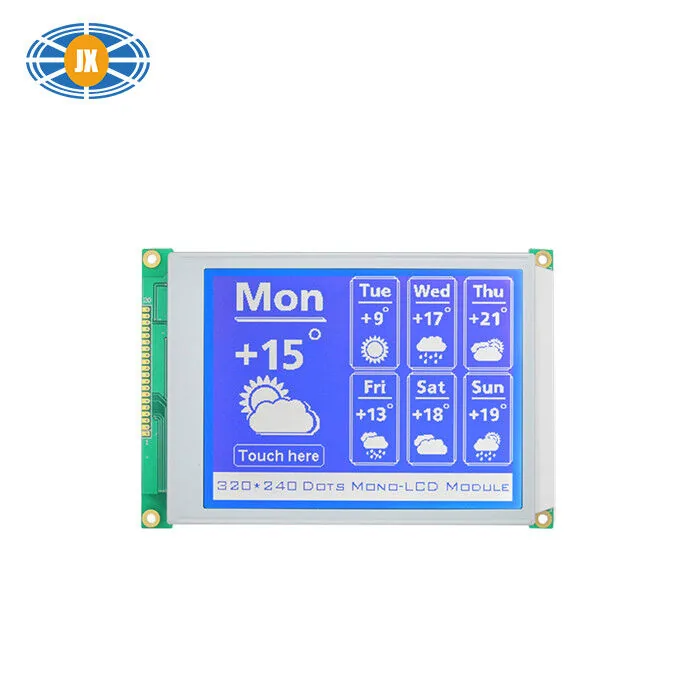

5.7 inch 320×240 Monochrome LCD Module With STN Transmissive / Negative LCD Type
JM320240A

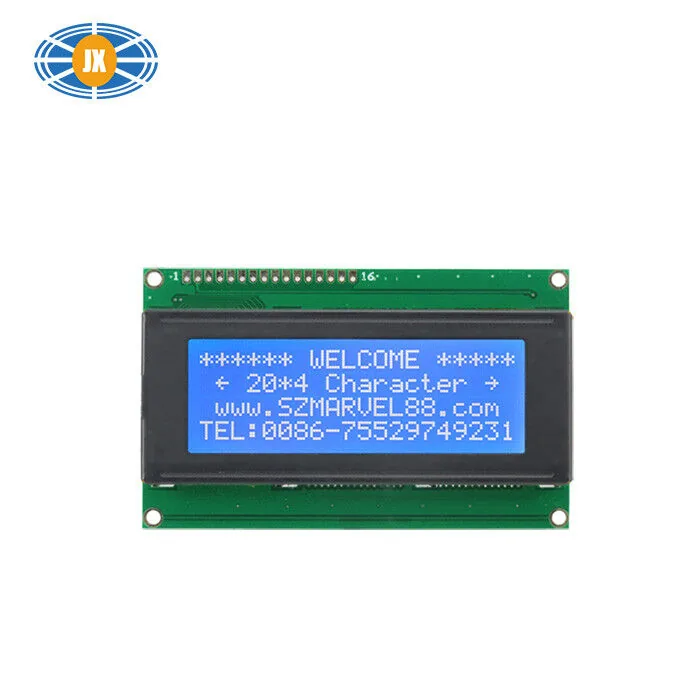

3.3V 5.0V Character LCD Modules 16 PIN LCD Display Monochrome Multiple Sizes
JM2004A

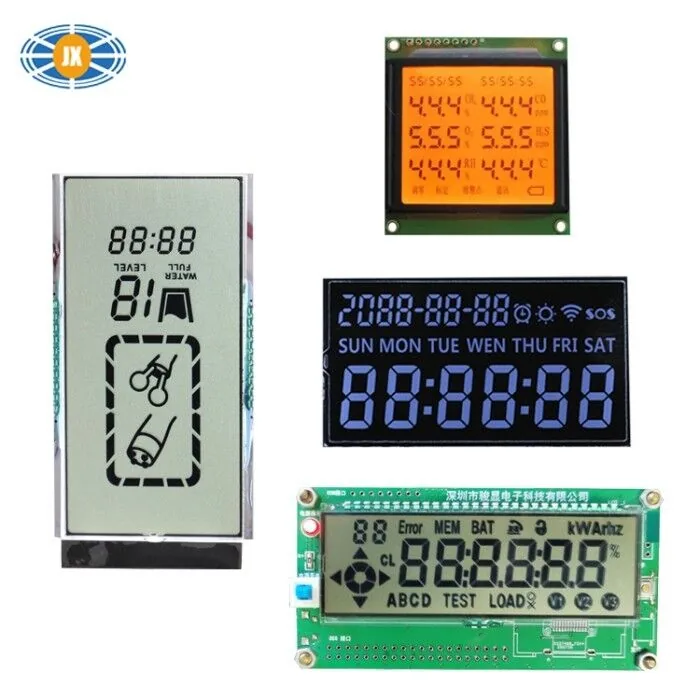

TN, STN & VA Segment LCD Display Custom Manufacturer
customizable TN segmented display

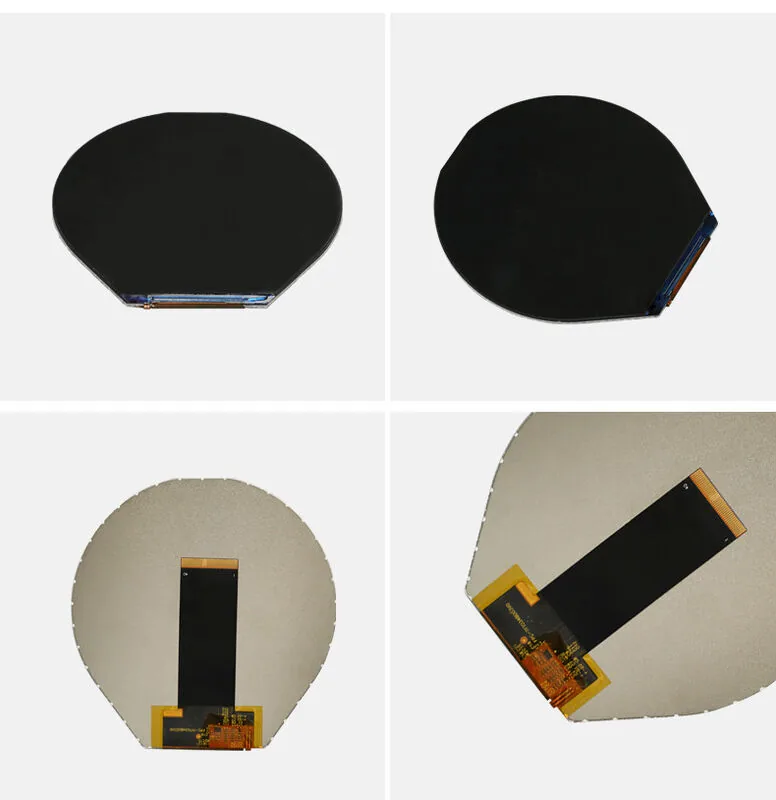

Custom 3.4 Inch Round LCD Screen 480×272 Pixels TFT Color LCD Display For Smartwatches
JM-PT106-00What we change on an existing panel
Most “custom display” projects are not custom glass at all. Everything in the first four boxes reuses existing glass and starts at 100 pcs with no tooling - which is the difference between a 10-20 days order and a tooling project.
FPC and connector
Length, pin order, exit direction, stiffener and connector type - the most requested change.
Backlight
Brightness, drive current and colour on monochrome parts. Decides power budget and lifetime.
Touch and cover glass
Capacitive or resistive, air or optical bonding, cover glass outline and printing.
Driver IC and PCBA
Controller selection within what the glass supports; on-board regulator or level shifting.
Glass itself
New size, shape or a custom segment layout. This is the one that needs tooling.
Why buyers choose a factory this size
We are not the biggest display maker in Shenzhen, and that is the point. A 1,500 m² plant with 3 lines takes orders that large panel houses decline.
Small batches are normal here
Sample MOQ is 5 pcs and standard items start at 100 pcs. Large panel fabs typically want tens of thousands of units before they open a line. If your product ships 2,000 units a year, you are a normal customer for us, not an exception.
Engineers answer, not a sales script
6 of our 52 staff are R&D. Enquiries that include a resolution and an interface get a technical answer with a specific model number, usually within one working day.

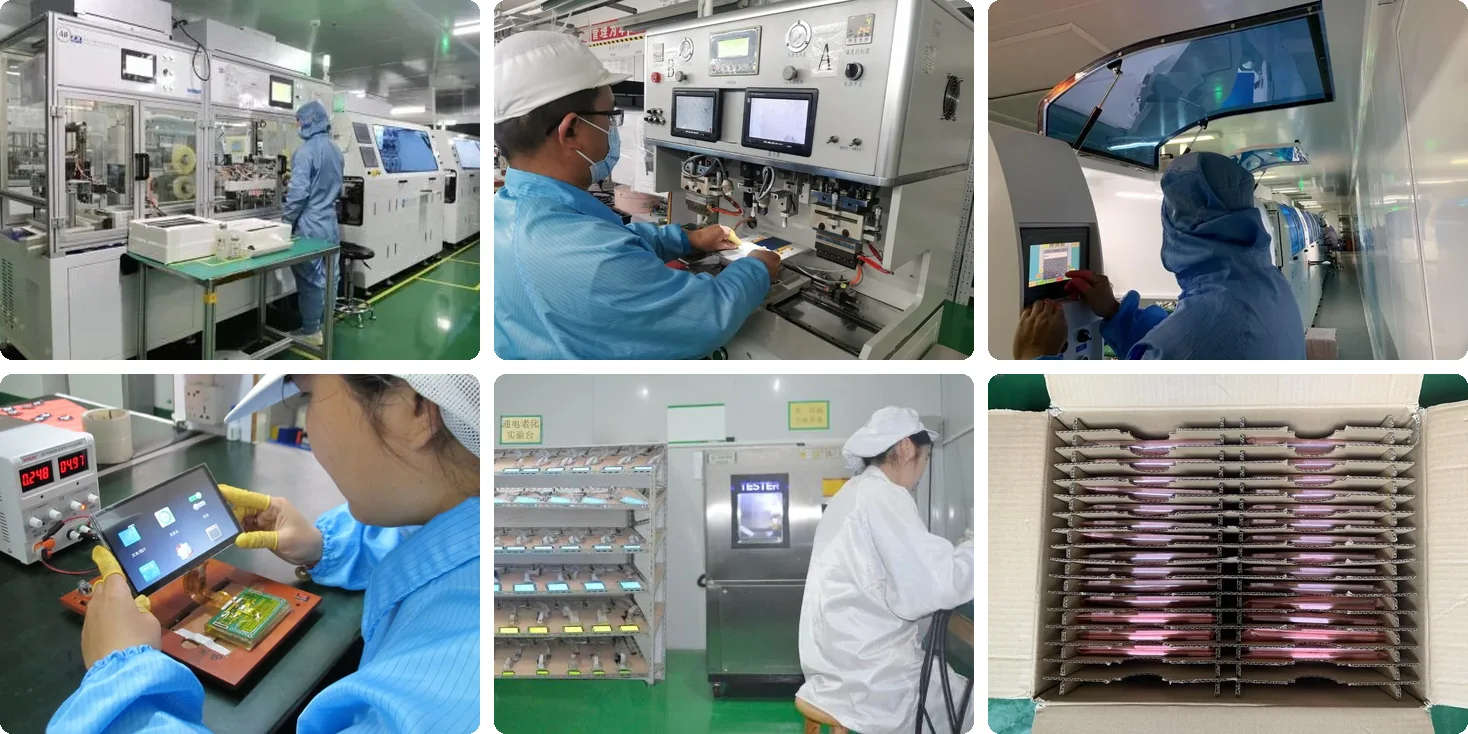

We sample in-house
Sampling is done on our own line, so a changed FPC length or a different backlight current does not mean queuing behind another factory's schedule. Samples ship in 10-15 days.
120 new models a year
Most of them start as a customer's drawing. That is the honest description of our R&D: turning a specific requirement into a manufacturable module, not inventing panel technology.
Long-term supply is written down
Industrial buyers need the same part in five years. We hold the glass and driver IC combination for running projects and give notice before changes. See how we handle EOL.
Documented, checkable claims
Company registered 2005, documented quality management system, RoHS and REACH compliant parts. Certificate copies and test reports are sent on request — see certifications.
How we actually perform
Numbers from our verified manufacturer profile on 1688.com, not from our own marketing. They cover our domestic order flow, which is where the volume is - export orders run on the same line and the same inspection.
Source: 1688.com verified store data, August 2026. Based on 126 orders in the preceding 30 days. Ask us for a current screenshot of the profile if you want to check it - we would rather you did.
Custom display projects
Three projects from our records: what the customer needed, which module we built, and how the cooperation went. All customer cases.

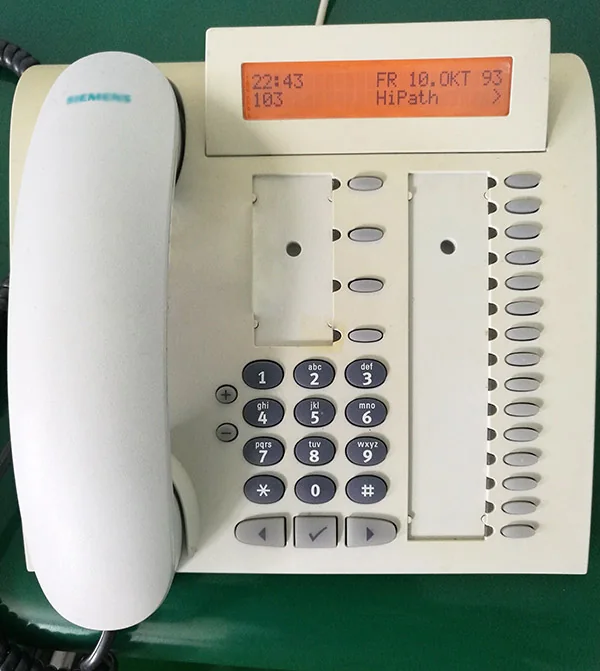

Renowned German Brand Customizes LCD Screens with Junxian
The LCD screen was required to be installed on telephone sets with an effective service life of over 5 years.
Cooperating since 2014, from samples to mass procurement
Leading Smart Home Brand Customizes LCD Modules at Junxian
Seeking a touchscreen display for 86mm panel switches, compatible with the ZS6 main control chip to enable interactive product functionality.
Touch display for the "Grace" smart switch series

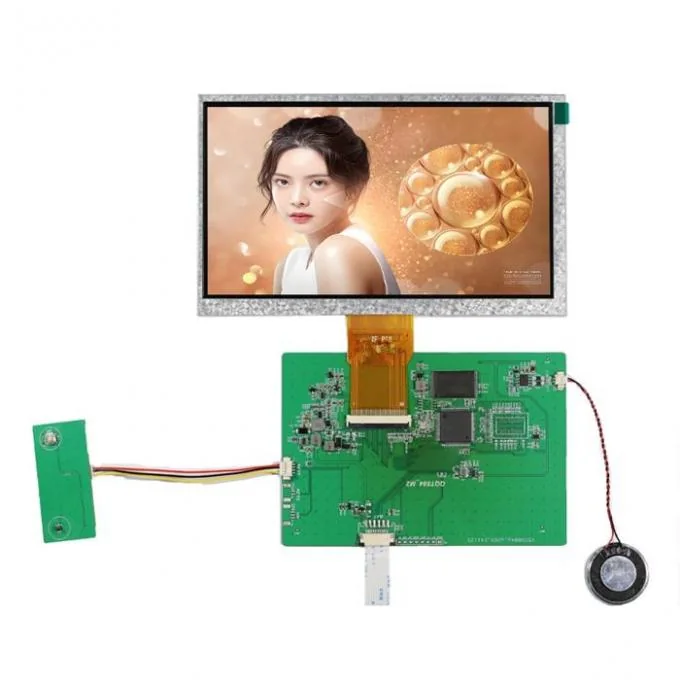

Customized 7 Inch LCD Modules for a Well-known Packaging & Printing Enterprise
Installation of LCD screens in cosmetic gift box equipment.
5 consecutive years of repeat ordersIndustries we supply
The mix below reflects what our current 188 production models are actually used for.
Industrial Automation & HMI
Panel HMIs, PLC front ends and machine controllers that need wide temperature and long-term supply.
Instrumentation & Metering
Power meters, gas analysers and test instruments using graphic LCD or segment glass.
Handheld Terminals & POS
PDAs, payment terminals and scanners where 3.5"-4.5" modules and low power decide battery life.
Smart Home & Appliances
Control panels, thermostats and smart locks with capacitive touch and slim bonding.
Energy Storage, BMS & EV Charging
BMS monitors, inverters and charging piles - including UART screens with a ready BMS command set.
Automotive Aftermarket & EV Instrument Clusters
Retrofit gauges and EV-conversion dashboards using round panels and smart serial modules rated for a cold start.
Engineering guides, not brochures
Written by the people who answer these questions in email all day, and backed by the actual parameters of the models on this site rather than generic industry figures.
Which interface should I use?
SPI, MCU parallel, RGB, LVDS and MIPI compared by pin count, resolution ceiling and what your processor has to provide.
How many nits do I actually need?
What 200, 350 and 500 cd/m² mean in a real enclosure - and why surface treatment often beats raw brightness.
How to choose a module in seven decisions
The order the decisions have to be made in, and what each one commits you to.
My display went end-of-life. Now what?
How to define a replacement by what your product actually constrains, and what is negotiable.
Capacitive or resistive? Air or optical bonding?
When resistive still wins, and when optical bonding pays for itself.
MOQ, lead time and samples
Samples 5 pcs, catalogue 100 pcs, tooled custom 1,000 pcs - and why the tiers are where they are.
Company at a glance
- Legal name
- Shenzhen Junxian Electronic Technology Co., Ltd.
- Chinese name
- 深圳市骏显电子科技有限公司
- Founded
- 2005
- Business type
- Manufacturer · OEM / ODM / OBM
- Plant
- 1,500 m², 3 lines, 19 machines
- Staff
- 52 total, 6 in R&D
- Products
- LCD / TFT / IPS / OLED / COG / character / segment modules, 0.96" - 15.6"
- Location
- Shenzhen, Guangdong, China
- Terms
- T/T, L/C, PayPal · EXW, FOB Shenzhen, CIF
- Website
- junxiandisplay.com
Plant and staff figures from our verified 1688.com manufacturer profile, August 2026. Business licence and ISO certificate copies available on request.
Ask for a quote
Tell us the size, resolution, interface and quantity. If you are not sure which interface suits your MCU, say so — that is a normal question and we will propose one.
Frequently asked questions
What is your MOQ for LCD modules?
Samples start at 5 pcs. Standard catalogue items are 100 pcs, and fully custom modules (custom FPC, backlight, glass or bonding) are 1,000 pcs. If your first order is below MOQ, tell us the annual forecast - we usually accept a smaller pilot batch when a schedule follows.
How long does production take?
10-20 days after the specification and artwork are frozen. Samples from stock glass take 10-15 days. Fully custom segment glass or a new FPC layout adds tooling time, which we confirm in writing before you place the order.
Can you customise the FPC, backlight and driver IC?
Yes. We change FPC length, pin order and connector type, adjust backlight brightness and colour temperature, and select the driver IC to match your MCU. Cover glass, bonding type (air gap or optical bonding) and touch controller are also open. See capabilities for what is and is not changeable.
Do you support long-term supply for industrial products?
Industrial customers usually need 5-10 years of continuity. We hold the glass and driver IC combination for running projects and give written notice before any change. Read the EOL guide for how we handle end-of-life panels and drop-in replacements.
Which interfaces do you support?
MCU/8080, SPI, RGB (16/18/24-bit), MIPI DSI, LVDS and UART for smart modules. Choosing between them is the single most common question we get - the interface guide compares them by resolution ceiling, pin count and MCU load.
Are you a factory or a trading company?
A factory. 1,500 m² of production space in Bao'an, Shenzhen with 3 assembly lines, 19 machines and 52 staff (6 in R&D). Company registered in 2005. You are welcome to visit or ask for a live video walkthrough of the line running your order.
Need a quote or a datasheet?
Send us size, resolution, interface and annual quantity. Our engineers reply within one working day. Sample MOQ 5 pcs, lead time 10-20 days.
