0.96" OLED display module, 128×64, MCU/I²C
- Model
- JM-PO122-00
- Size
- 0.96"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PO122-00, built in our Shenzhen plant, -40°C to +70°C operating range, SSD1306BZ driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PO122-00 |
|---|---|
| Screen size | 0.96" |
| Resolution | 128×64 |
| Display type | outstanding |
| Interface | 6800/8080 Interface, I2C |
| Contrast ratio | 2000 : 1 (Dark Room Contrast ) |
| Colours | Black White Blue Yellow Green Fonts |
| Driver IC | SSD1306BZ |
| Backlight | white light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 26.7mm×19.26mm×1.41mm |
| Active area | 21.744mmX10.864mm |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
Custom & OEM 0.96-inch OLED Display Module With 128×64 SSD1306BZ White Monochrome Monitor For Wearables & IoT
What is OLED Display Modules?
An OLED Display Module is a type of display device that uses organic light - emitting diode (OLED) technology. It consists of an array of OLED pixels that can emit light when an electric current is applied. OLED Display Modules are widely used in various electronic devices due to their excellent characteristics, such as high contrast ratios, wide viewing angles, fast response times, and the ability to display vibrant and accurate colors. They can be found in applications like smartphones, tablets, wearable devices, and automotive displays. Additionally, OLED Display Modules often come with integrated driver circuits to control the operation of the OLED pixels and interface with the host device.
Product Features and Advantages
(1) Stunning Visual Performance
Equipped with a 128×64 dot matrix white monochrome OLED, self-illuminating pixels deliver a 2000:1 contrast ratio for crisp, clear visuals even in low-light environments. The 80-120 cd/m² brightness (adjustable via charge pump) and 160° wide viewing angle ensure consistent visibility from any perspective.
(2) Compact & Versatile Design
With a slim 1.41mm thickness and 0.96-inch diagonal size (active area 21.74×10.86mm), this module is ideal for space-constrained applications. The SSD1306BZ drive IC enables efficient operation, while multiple interfaces (6800/8080 parallel, 4-wire serial, I²C) offer flexible compatibility with various systems.
(3) Rugged & Low-Power Operation
Operates reliably in -40°C to 70°C environments, suitable for industrial and outdoor use. The passive matrix drive ensures low power consumption, making it suited to battery-powered devices. VDD supports 1.65-3.3V, and VBAT 3.5-4.2V for versatile power setups.
(4) Quality Assurance
No.685296) for consistent manufacturing standards, guaranteeing durability and performance in smart wearables, IoT devices, and industrial equipment.

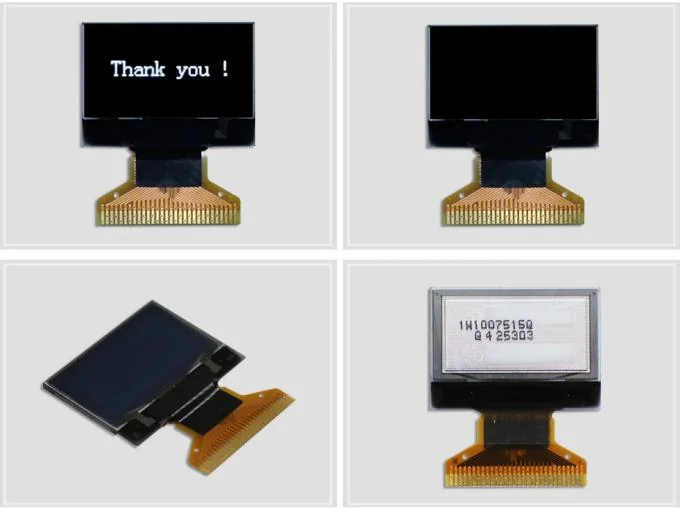

Detail photos
What this specification means in practice
I2C needs only two wires and shares the bus with your sensors - the practical choice for status displays where update rate is not critical.
Operating range -40°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Handheld Terminals & POS
Battery-powered handhelds - an OLED lights only the pixels it needs, so a mostly dark screen draws very little.
Instrumentation & Metering
Small readouts needing wide viewing angle and high contrast in a few square centimetres.
Smart Home & Appliances
Smart locks, chargers and small appliances where the display is a status window, not a UI.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
0.96 Inch - 15.6 Inch Custom LCD Display Multiple TFT Display Screen
Industrial 0.96 Inch OLED Screen 128×64 Dot Matrix Display Module With SSD1315Z Drive
0.96 Inch TFT Display , OEM LCD Liquid Crystal Display Manufacturer
Wide Viewing Angle 0.96" TFT LCD Display 350cd/m2 SPI Interface LCD Display 0.96 Inch
Questions about this model
What is the minimum order quantity for the JM-PO122-00?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
