TFT and IPS LCD Display Modules
38 models from 0.96" to 15.6", with RGB parallel, SPI and MCU / 8080 / 6800 parallel interfaces. Samples 5 pcs, lead time 10-20 days. TFT modules are the default choice when a product needs colour, graphics or a changing UI. We build them from 0.96" to 15.6" with MCU, SPI, RGB, LVDS and MIPI interfaces, in TN and IPS glass. The three decisions that drive cost are the interface (does your processor have an LCD controller?), the glass mode (does the operator look at it straight on?) and brightness (indoor or outdoor?). Get those right and the rest is mechanical.
All models made in our own Shenzhen plant
TFT LCD Display Modules in stock production
RoHS Compliant Custom LCD Display Manufacturer Multiple OEM TFT Display
Multiple Size TFT display Customization
Industrial TFT LCD Screen 240x320 Wide Viewing Angle HD LCD Monitor
JM-PT127-01
LCD 1.44 TFT 128X128 TFT Display , Custom LCD Display Module With ST7735S Driver
JM-GD823-00
0.96 Inch - 15.6 Inch Custom LCD Display Multiple TFT Display Screen
Multiple TFT display customization
0.96 Inch TFT Display , OEM LCD Liquid Crystal Display Manufacturer
JM-PT138-00
Wide Viewing Angle 0.96" TFT LCD Display 350cd/m2 SPI Interface LCD Display 0.96 Inch
JM-PT052-TI80160NSL0096
1.14 Inch IPS TFT LCD Display Manufacturer 135x240 Pixels 8 Bit MCU Llcd Interface
JM-PT149-00
High Resolution TFT Display 240x240 1.3 Inch LCD Display 300cd/m2
JM-PT115-00
Compact 1.77 Inch LCD TFT Display Panel , 250cd/m2 TFT Color LCD Display
JM-PT130-00
Compact 1.77 Inch TFT Color LCD Display Panel 200cd/M2 128x160 Pixels
JM-PT037-01
1.77 Inch Transmissive TN LCD Display 128X160 TFT Display For Industrial
JM-PT077

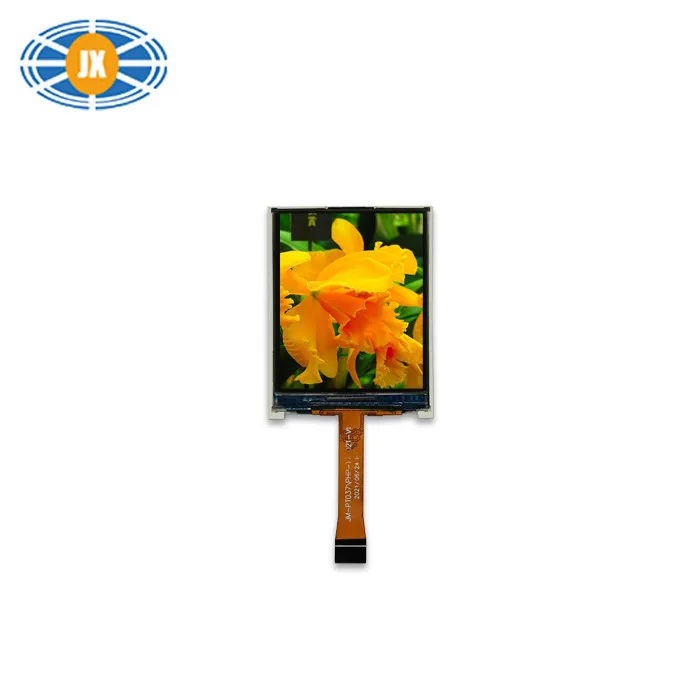

1.77 Inch TFT LCD Display 4 Bit 128×160 Pixels Color TFT Display SPI Interface
JM-PT037

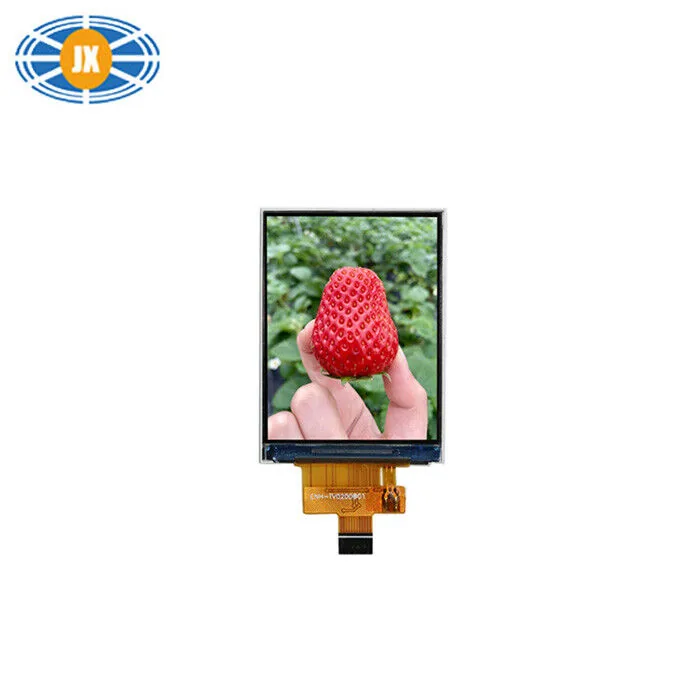

2 Inch IPS LCD Display 240x320 Pixels with Visual Excellence Monitor
JM-PT086
Custom 2.4 Inch TFT LCD Display 240×320 MCU Interface 350cd/m2 High Brightness TFT Display
JM-PT090
MCU Interface Colour TFT Display 2.4 Inch With DH ST7789V Driver
JM-PT095-00
Robust Industrial TFT Display 2.4 Inch 350cd/M2 Brightness For Harsh Environments
JM-PT095-01
Crisp Visuals IPS LCD Display 2.4 Inch Industrial TFT LCD Module With PCBA
JM-GD819
2.8 Inch Industrial TFT Custom LCD Display Panel Four Channel Audio Display Panel
JM-T006
Industrial 2.8 Inch TFT LCD Display 240x320 For Harsh Environments
JM-PT119-01
3 Inch TFT LCD Display 500cd/m2 High Brightness LCD Monitor With Full Viewing Angle
JM-PT112
3.2 Inch TFT LCD Display , Compact QVGA TFT LCD Module With ST7789 Control Driver
JM-TFT032B002
3.2 Inch Industrial IPS TFT LCD Module Wide Viewing Angle IPS LCD Screen
JM-PT137-00
350cd/m2 IPS LCD Display 3.5 Inch Wide 80° Viewing Angle With RGB 24 Bit Interface
JM-PT113

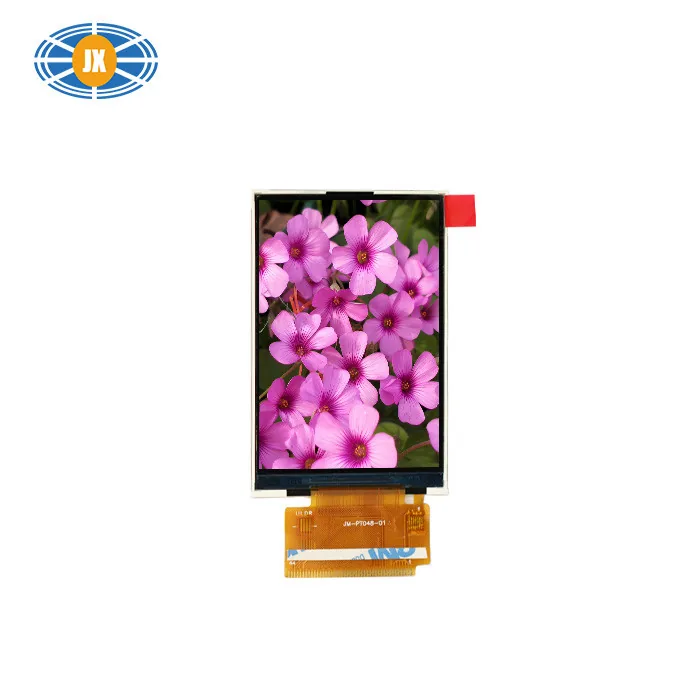

320x480 Pixels TFT LCD Display Panel 3.5 Inch LCD Display Module
JM-PT048-01
3.5 Inch Industrial Color IPS LCD Screen 240×320 LCD Color Display With Wide Viewing Angle
JM-PT075
4.0 Inch 3.97 Inch IPS TFT LCD Screen 480x800 SPI RGB 24 Bit Interface Display Module
JM-PT154-02
4.3 Inch TFT LCD Display 480x272 4.3 TFT LCD Color Monitor With 16M Colors Full 85° Viewing Angle
JM-PT104-00
TFT LCD Color Monitor 4.3 Inch TFT Color LCD Display With Full Viewing Angles
JM-PT089
Full Viewing Angle 4.45 Inch TFT Color LCD Module 400cd/m2 With MIPI Interface
JM-PT097
300cd/m2 5 Inch TFT LCD Monitor , IPS LCD Display Module 480x854 Pixels
JM-PT128-00
5 Inch IPS Display Full View TFT LCD Module 500cd/M2 Sunlight Readable Brightness
JM-TFT050BI52
5 Inch Industrial TFT LCD Module - Wide Temp Resistant (70°C/-20°C Tested) with RGB Data Bus
JM-PT136-00
7 Inch TFT LCD Display 450cd/M2 Industrial Custom TFT Display Viewing Angle
JM-PT098-00
300cd/m2 High Brightness LCD Display 7 Inch 1024x600 For Automotive
JM-PT034
7 Inch IPS Display Industrial TFT Color LCD Module With WXGA 550cd/M2 TTL LCD Interface
JM-PT135-00
7-inch IPS Optional Touch Custom LCD Screen for Various Gift Box Applications
JM-GD824-00
10.1 inch Color TFT LCD Display MIPI Interface High Luminance LCD Monitor 800×1280 Pixels
JM-PT134-01
15.6 Inch FHD TFT LCD Panel High Contrast LCD Monitor Anti Glare Slim Design For Laptop
JM-PT143-01Model comparison
All values are typical. Click a model number for the full specification.
| Model | Size | Resolution | Type | Interface | Brightness | Touch | Operating temp |
|---|---|---|---|---|---|---|---|
| Multiple Size TFT display Customization | " | Presets | IPS/TN | MIPI/RGB/SPI/HDMI/MCU | 100~1000 Nit | Customizable CTP (Capacitive Touch Panel) | |
| JM-PT127-01 | " | 240×320 | TN | 4SPI | 250 cd/m² | Touch-screen And No Touch Screen For Optional | -20°C to +70°C |
| JM-GD823-00 | " | 128×128 | TN | SPI | 150 cd/m² | Selectable | -20°C to +70°C |
| Multiple TFT display customization | 0.96" | Presets | IPS/TN | MIPI/RGB/SPI/HDMI/MCU | 100~1000 Nit | Capacitor/resistor optional | |
| JM-PT138-00 | 0.96" | 80×160 | IPS | SPI | 350 cd/m² | Without Touch Screen (Customizable) | -20°C to +70°C |
| JM-PT052-TI80160NSL0096 | 0.96" | 80×160 | IPS | SPI 4 | 350 cd/m² | Touch-screen And No Touch Screen For Optional | -20°C to +60°C |
| JM-PT149-00 | 1.14" | 135×240 | IPS | MCU 8BIT | 300 cd/m² | - | -20°C to +70°C |
| JM-PT115-00 | 1.3" | 240×240 | IPS | RGB | 300 cd/m² | Without Touch Screen (Customizable) | -20°C to +70°C |
| JM-PT130-00 | 1.77" | 128×160 | TN | SPI | 250 cd/m² | Without Touch Screen (Customizable) | -20°C to +70°C |
| JM-PT037-01 | 1.77" | 128×160 | TN | SPI | 200 cd/m² | No Touch Screen | -20°C to +70°C |
| JM-PT077 | 1.77" | 128×160 | TN | 8-bit Parallel Port | 300 cd/m² | Selectable | -20°C to +70°C |
| JM-PT037 | 1.77" | 128×160 | TN | 4-bit SPI | 230 cd/m² | selectable | -20°C to +70°C |
| JM-PT086 | 2" | 240×320 | IPS | SPI | 250 cd/m² | Optional TP | -20°C to +70°C |
| JM-PT090 | 2.4" | 240×320 | TN | MCU | 350 cd/m² | selectable | -20°C to +70°C |
| JM-PT095-00 | 2.4" | 240×320 | TN | MCU Interface | 250 cd/m² | Without Touch Screen (Customizable) | -20°C to +70°C |
| JM-PT095-01 | 2.4" | 240×320 | TN | SPI | 350 cd/m² | Touch-screen And No Touch Screen For Optional | -20°C to +70°C |
| JM-GD819 | 2.4" | 240×320 | IPS | SPI | 200 cd/m² | No Touch Screen Or Touch Screen For Optional | -20°C to +70°C |
| JM-T006 | 2.8" | 320×240 | IPS | RGB 24BIT | 350 cd/m² | selectable | -20°C to +70°C |
| JM-PT119-01 | 2.8" | 240×320 | IPS | 8-bit MCU | 600 cd/m² | Touch-screen And No Touch Screen For Optional | -20°C to +70°C |
| JM-PT112 | 3" | 360×640 | TN | MIPI/RGB | 450 cd/m² | No Touch Screen Or Touch Screen Optional | -20°C to +70°C |
| JM-TFT032B002 | 3.2" | 240×320 | TN | SPI | 400 cd/m² | Touch-screen And No Touch Screen For Optional | -10°C to +60°C |
| JM-PT137-00 | 3.2" | 240×320 | IPS | SPI/MCU | 300 cd/m² | No Touch Screen Or Touch Screen For Optional | -20°C to +70°C |
| JM-PT113 | 3.5" | 320×240 | IPS | RGB 24BIT | 350 cd/m² | Selectable | -20°C to +70°C |
| JM-PT048-01 | 3.5" | 320×480 | TN | RGB/MCU | 250 cd/m² | No Touch Screen Or Touch Screen Optional | -20°C to +70°C |
| JM-PT075 | 3.5" | 240×320 | IPS | 8BIT | 300 cd/m² | No Touch Screen Or Touch Screen For Optional | -20°C to +70°C |
| JM-PT154-02 | 4.0" | 480×800 | IPS | RGB/TTL | 300 cd/m² | Selectable | -20°C to +70°C |
| JM-PT104-00 | 4.3" | 480×272 | IPS | RGB | 250 cd/m² | No Touch Screen Or Touch Screen Optional | -20°C to +70°C |
| JM-PT089 | 4.3" | 800×480 | IPS | RGB 24BIT | 280 cd/m² | Touch-screen And No Touch Screen For Optional | -20°C to +70°C |
| JM-PT097 | 4.45" | 480×854 | IPS | MIPI | 400 cd/m² | Touch-screen And No Touch Screen For Optional | -20°C to +70°C |
| JM-PT128-00 | 5" | 480×854 | IPS | MIPI | 300 cd/m² | Customizable Touch | -20°C to +70°C |
| JM-TFT050BI52 | 5" | 800×480 | IPS | RGB | 500 cd/m² | Customizable Touch | -20°C to +70°C |
| JM-PT136-00 | 5" | 800×480 | IPS | Parallel RGB 8-bit | 500 cd/m² | No Touch Screen Or Touch Screen For Optional | -20°C to +70°C |
| JM-PT098-00 | 7" | 800×480 | TN | RGB 8bit | 450 cd/m² | Customizable Touch | -20°C to +70°C |
| JM-PT034 | 7" | 1024×600 | IPS | RGB Vertical Stripe | 300 cd/m² | CTP Touch Screen | -10°C to +70°C |
| JM-PT135-00 | 7" | 1024×600 | IPS | RGB | 350 cd/m² | No Touch Screen Or Touch Screen For Optional | -10°C to +60°C |
| JM-GD824-00 | 7" | 1024×600 | IPS | RGB/TTL | 350 cd/m² | Selectable | -10°C to +60°C |
| JM-PT134-01 | 10.1" | 800×1280 | IPS | MIPI | 550 cd/m² | selectable | -10°C to +50°C |
| JM-PT143-01 | 15.6" | 1920×1080 | FFS | EDP 1.2 | 250 cd/m² | Optional Touch |
How to choose
Which interface?
8-bit MCU with no LCD controller: SPI. ARM/Linux board: RGB. High resolution or few free pins: MIPI. Long cable or larger panel: LVDS.
Which glass mode?
Operator looks straight on and cost matters: TN. Panel read from an angle: IPS. Dark room, high contrast wanted: VA.
How much brightness?
Indoor instrument: 200-300 cd/m². Workshop or near a window: 350-450 cd/m². Outdoors or in a vehicle: 500 cd/m² and up.
Wide temperature?
If the enclosure is unheated or goes outdoors, specify -20 °C or lower - commercial panels stop at 0 °C.
Still unsure? The technical guides go through these decisions with numbers, or send us the application and we will shortlist two or three models.
TFT LCD Display Modules - common questions
What is the MOQ for tft lcd display modules?
Samples 5 pcs, standard production 100 pcs, fully custom 1,000 pcs.
Can I get a datasheet before ordering?
Yes, on request. Email hyd@szjunxian.com with the model number, or list your parameters and we will propose models that fit.
Do you supply the panel only, or a complete assembly?
Both, by default a bare module. We also bond touch panels and cover glass, fit custom FPCs and connectors, and supply a driver board where the design needs one.
What if none of the listed models fits?
About 120 new models a year start exactly this way: we modify a close model or build to your drawing. Send the size, resolution and interface you need.
Are you a manufacturer of tft lcd display modules, or a trading company?
A manufacturer. Every model on this page is built on our own line in Bao'an, Shenzhen - we are a tft lcd display module supplier in China with our own plant, 3 assembly lines and 52 staff, not an agent reselling another factory's panels. The business licence and ISO 9001 certificate with its registration number are published on our certifications page, and you are welcome to see the plant on video before you order.
