5" IPS TFT LCD module, 800×480, RGB
- Model
- JM-TFT050BI52
- Size
- 5"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-TFT050BI52, built in our Shenzhen plant - 500 cd/m² brightness, -20°C to +70°C operating range, ST7262 driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-TFT050BI52 |
|---|---|
| Screen size | 5" |
| Resolution | 800×480 |
| Display type | IPS |
| Interface | RGB |
| Brightness | 500 cd/m² |
| Colours | 16.7M |
| Touch panel | Customizable Touch |
| Driver IC | ST7262 |
| Driving voltage | 3.3 V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 120.7mmX75.8mmX2.8mm |
| Active area | 108.0X64.8mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
Custom and OEM 5 Inch Full View TFT-LCD Module With 500cd/m2 Sunlight-readable Brightness For Indoor/outdoor Use
JM-TFT050BI52 is a 5-inch thin-film-transistor liquid-crystal display (TFT-LCD) module featuring a full-view design with 80° viewing angles in all directions (3:00/6:00/9:00/12:00 o’clock), ensuring consistent clarity from any perspective. With a standard brightness of 500 cd/m², it is readable in sunlight. An optional capacitive touchscreen is available to enhance interactive functionality.
Key Specifications
Display: 800×480 pixels (WVGA), 16M colors, 800:1 contrast ratio, 30 ms response time, 50% NTSC color gamut
Physical Dimensions: 120.7×75.8×2.8 mm (excluding FPC and solder, with 8 bumps); active area: 108×64.8 mm
Backlight: 18-LED white, 19.2V supply voltage, ~1.152W typical power consumption
Environment: Operating temp. -20°C~70°C; storage temp. -30°C~80°C
Compliance: RoHS certified, passed reliability tests (high/low temp storage, humidity cycling, vibration resistance, ±8kV ESD air discharge)
Product Features
Full-view design for multi-angle visibility
Sunlight-readable brightness for indoor/outdoor use
Optional capacitive touchscreen for interactive applications
Slim profile (2.8 mm thickness) for compact installations
Rugged reliability for industrial and consumer electronics
Ideal for industrial controls, medical devices, automotive displays, and handheld devices
Ensuring reliability and environmental safety.Rigorous testing (high-temperature storage, thermal shock) guarantees long-term durability and performance stability.

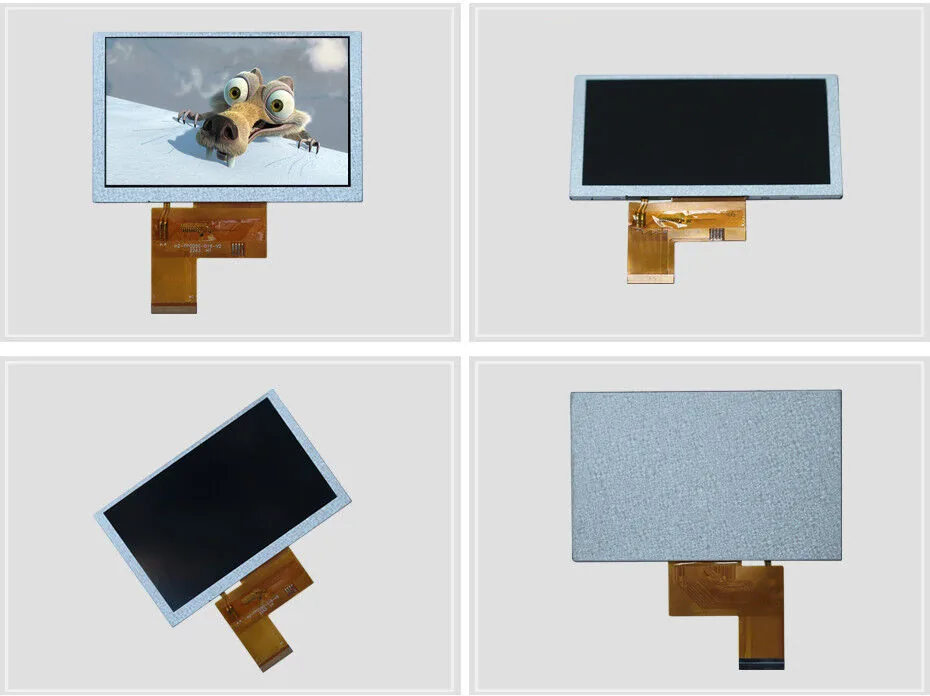

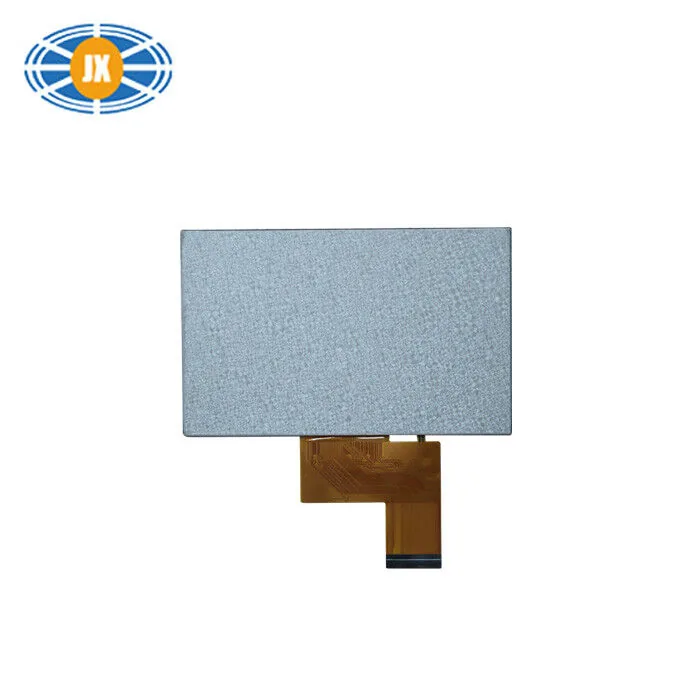

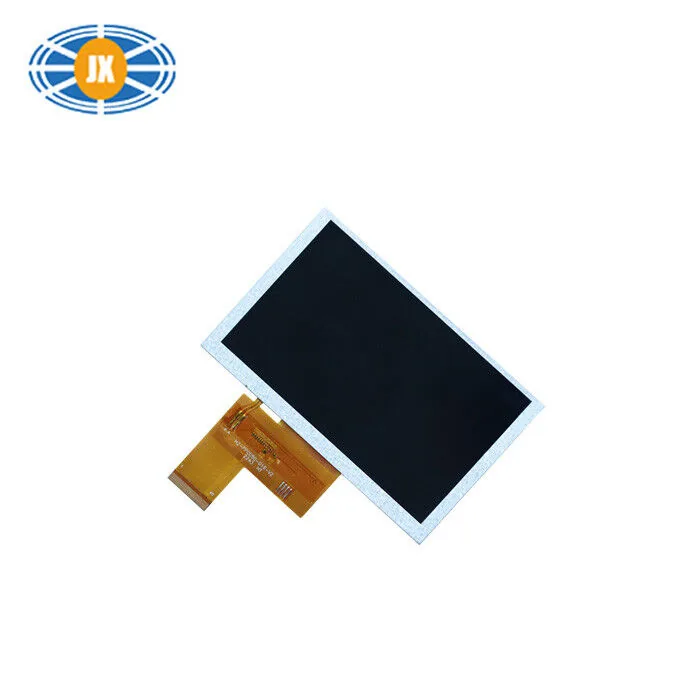

Detail photos
What this specification means in practice
IPS glass keeps colour and contrast stable from any angle, which matters when the operator does not look at the panel straight on - wall-mounted HMIs, instruments read from above, shared displays.
At 500 cd/m² this is one of our sunlight-readable panels. It stays legible on outdoor equipment, charging piles and vehicle-mounted terminals, at the cost of a higher backlight current - budget for it in battery-powered designs.
The parallel RGB interface needs a host with an LCD controller and around 20-28 I/O lines. It gives full frame-rate colour without a frame buffer IC, which is why it is standard on industrial ARM boards.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Industrial Automation & HMI
Machine panels and PLC front ends, where the module sits behind a cut-out in a metal enclosure and has to survive years of vibration.
Instrumentation & Metering
Bench and field instruments that show waveforms, curves or multi-line readings that a segment display cannot express.
Smart Home & Appliances
Control panels for appliances and thermostats, usually behind printed cover glass.
Handheld Terminals & POS
Portable terminals where the module size sets the whole enclosure dimension.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
