15.6" TFT LCD module, 1920×1080
- Model
- JM-PT143-01
- Size
- 15.6"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PT143-01, built in our Shenzhen plant - 250 cd/m² brightness. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PT143-01 |
|---|---|
| Screen size | 15.6" |
| Resolution | 1920×1080 |
| Display type | FFS |
| Interface | EDP 1.2 |
| Brightness | 250 cd/m² |
| Contrast ratio | 1200 |
| Colours | 16.7M |
| Touch panel | Optional Touch |
| Driving voltage | 25.2-29.7V |
| Backlight lifetime | 40,000 Hours |

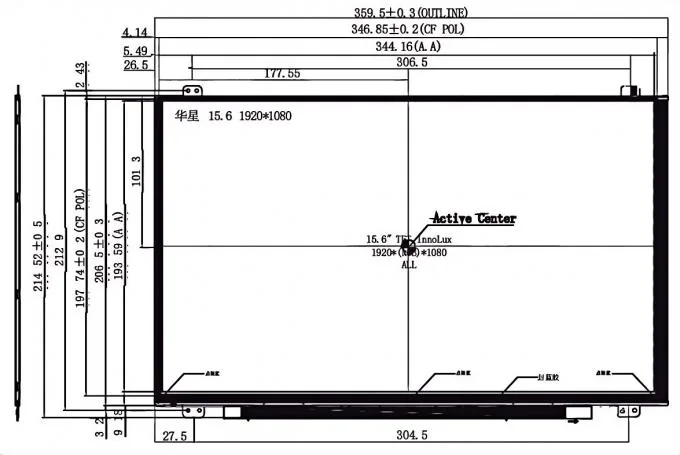

| Outline dimension | 359.50x214.52x3.3mm |
| Active area | 346.85X212.90mm |
| Storage temperature | -20°C to +60°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Product description
Custom & OEM 15.6-inch FHD TFT LCD Panel High-Contrast LCD Monitor With Anti-Glare & Slim Design For Laptops
Product Key Features and Advantages
(1) Visual Performance:
15.6-inch FHD TFT LCD panel with native resolution 1920×1080 (FHD), delivering crisp visuals and sharp image detail.
Supports 16.7M colors (6-bit + FRC) for vibrant color reproduction, combined with a 1200:1 (Typ) contrast ratio and 45% NTSC color gamut for balanced clarity and color accuracy in diverse scenarios.
(2) High-Speed Connectivity:
Equipped with a 30-pin eDP 1.2 interface (2-lane @ 2.7Gbps) for fast data transmission and seamless compatibility with modern graphics systems.
(3) Anti-Glare & Ergonomic Design:
Anti-glare surface treatment reduces reflections, enhancing visibility in bright or mixed-light environments (e.g., outdoor use, office setups).
Slim profile: 348.76mm (W) × 200.89mm (H) × 1.054mm (D), weighing only 175g (with PCBA), ideal for compact, lightweight devices like laptops and portable monitors.
(4) Robust Environmental Adaptability:
Low power consumption: 750mW (max.) for the panel, with a recommended backlight unit (6S9P configuration) at 3.3W, ensuring energy efficiency.
(5) Compliance & Quality Assurance:
Ensuring environmental sustainability and consistent quality for global markets.

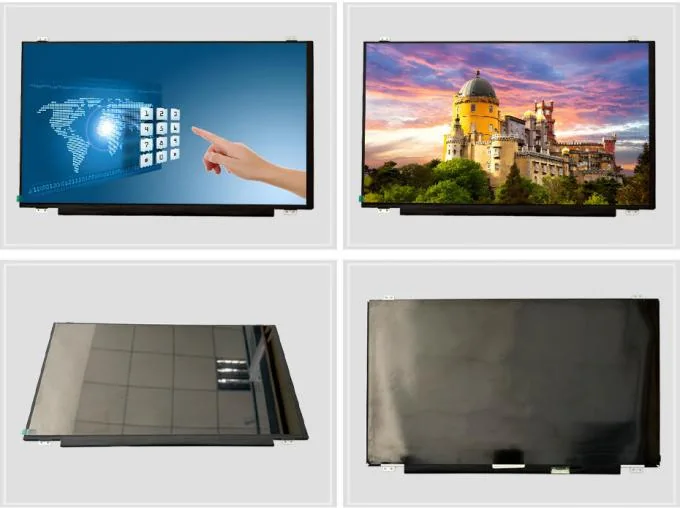

Detail photos
What this specification means in practice
250 cd/m² suits indoor instruments and panel HMIs. If the device will sit outdoors or under direct light, ask us for the high-brightness version of this glass instead.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Industrial Automation & HMI
Machine panels and PLC front ends, where the module sits behind a cut-out in a metal enclosure and has to survive years of vibration.
Instrumentation & Metering
Bench and field instruments that show waveforms, curves or multi-line readings that a segment display cannot express.
Smart Home & Appliances
Control panels for appliances and thermostats, usually behind printed cover glass.
Handheld Terminals & POS
Portable terminals where the module size sets the whole enclosure dimension.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
Custom 2.4 Inch TFT LCD Display 240×320 MCU Interface 350cd/m2 High Brightness TFT Display
1.14 Inch IPS TFT LCD Display Manufacturer 135x240 Pixels 8 Bit MCU Llcd Interface
7 Inch TFT LCD Display 450cd/M2 Industrial Custom TFT Display Viewing Angle
300cd/m2 5 Inch TFT LCD Monitor , IPS LCD Display Module 480x854 Pixels
Questions about this model
What is the minimum order quantity for the JM-PT143-01?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
