1.77" TFT LCD module, 128×160, SPI (JM-PT037)
- Model
- JM-PT037
- Size
- 1.77"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PT037, built in our Shenzhen plant - 230 cd/m² brightness, -20°C to +70°C operating range, ST7735S driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PT037 |
|---|---|
| Screen size | 1.77" |
| Resolution | 128×160 |
| Display type | TN |
| Interface | 4-bit SPI |
| Brightness | 230 cd/m² |
| Colours | 262K |
| Touch panel | selectable |
| Driver IC | ST7735S |
| Driving voltage | 3.0V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 34.00x43.70x2.5mm |
| Active area | 28.63X35.64mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
Product Features and Advantages
Equipped with a 1.77 - inch TFT color LCD and a resolution of 128×160 pixels, it can present relatively clear and vivid color images with 262K display colors. The ST7735S control driver ensures stable display performance.
The 4 - bit SPI LCD interface is simple and convenient for connection. With a compact size of 34.00×43.70×2.5mm and a visual area of 28.63×35.64mm, it is suitable for applications with limited installation space.
It has a wide operating temperature range of - 20°C ~ + 70°C and a storage temperature range of - 30°C ~ + 80°C, allowing it to work stably in various harsh environments. The LED backlight has a long lifespan of 40,000 hours, reducing the frequency of replacement.
The touch screen is selectable, which can meet different user operation requirements. It complies with REACH & ensuring product quality and environmental friendliness.

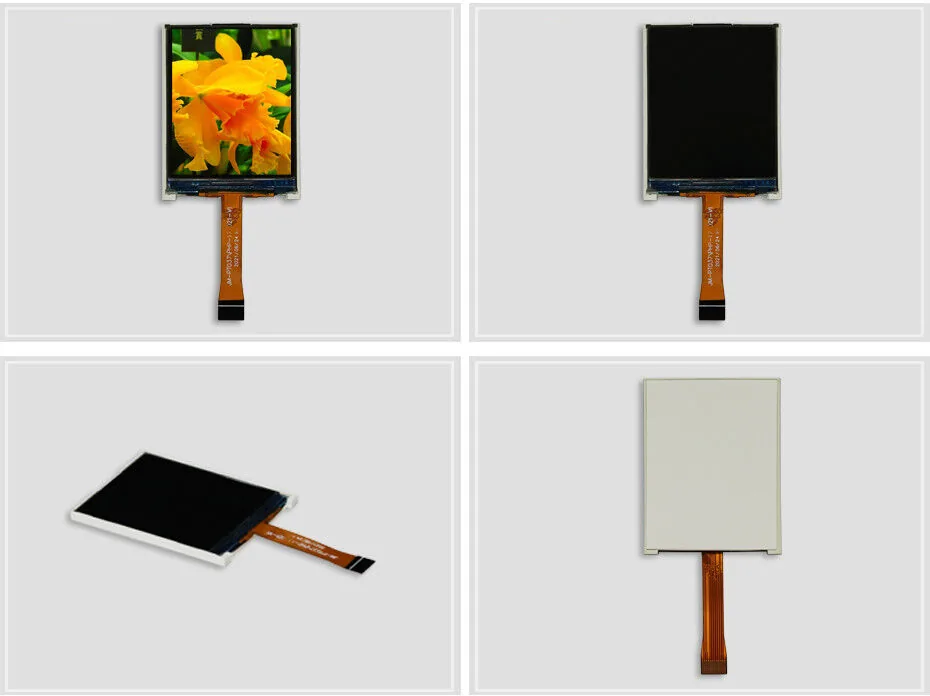

Detail photos
What this specification means in practice
TN glass is the cost-efficient choice with the fastest response. Contrast and colour shift once you move off the specified viewing direction, so it fits devices with a fixed operator position.
230 cd/m² suits indoor instruments and panel HMIs. If the device will sit outdoors or under direct light, ask us for the high-brightness version of this glass instead.
SPI keeps the wiring to four or five lines, which is why it dominates small colour displays on 32-bit MCUs. The trade-off is refresh rate on larger resolutions.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
