0.96" IPS TFT LCD module, 80×160, SPI (JM-PT052-TI80160NSL0096)
- Model
- JM-PT052-TI80160NSL0096
- Size
- 0.96"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PT052-TI80160NSL0096, built in our Shenzhen plant - 350 cd/m² brightness, -20°C to +60°C operating range, ST7735S driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PT052-TI80160NSL0096 |
|---|---|
| Screen size | 0.96" |
| Resolution | 80×160 |
| Display type | IPS |
| Interface | SPI 4 |
| Brightness | 350 cd/m² |
| Touch panel | Touch-screen And No Touch Screen For Optional |
| Driver IC | ST7735S |
| Driving voltage | 2.8V-3.2V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 13.50x27.95x1.5mm |
| Active area | 10.80X21.70mm |
| Operating temperature | -20°C to +60°C |
| Storage temperature | -30°C to +70°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
Custom 160° Wide Viewing Angle 0.96" TFT LCD with SPI Interface - RoHS Compliant Perfect for Wearables & Industrial Sensors
Key Features & Advantages
(1) Ultra-Compact Design for Space-Efficient Solutions
Miniature size: 13.5(W)×27.95(H)×1.5(T) mm, ideal for portable devices, wearables, and tight-fit industrial systems.
Lightweight yet robust, balancing size with durability for space-constrained applications.
(2) Reliable Performance & Efficient Connectivity
Powered by ST7735S driver IC with 4-line SPI interface for fast, stable data transmission in embedded systems.
350–400 cd/m² backlight luminance ensures clear visibility in moderate lighting, with a 40,000-hour lifetime for long-term use.
(3) Wide Viewing & Environmental Resilience
160° horizontal/vertical viewing angle (CR>10) enables all-angled visibility, suited to multi-user or dynamic setups.
Meeting environmental and quality standards for global markets.
(4) Sharp Visuals for Critical Displays
640:1 minimum contrast ratio delivers crisp image differentiation, while 30–40ms response time (Tn+Tr) ensures smooth motion in text or graphics.

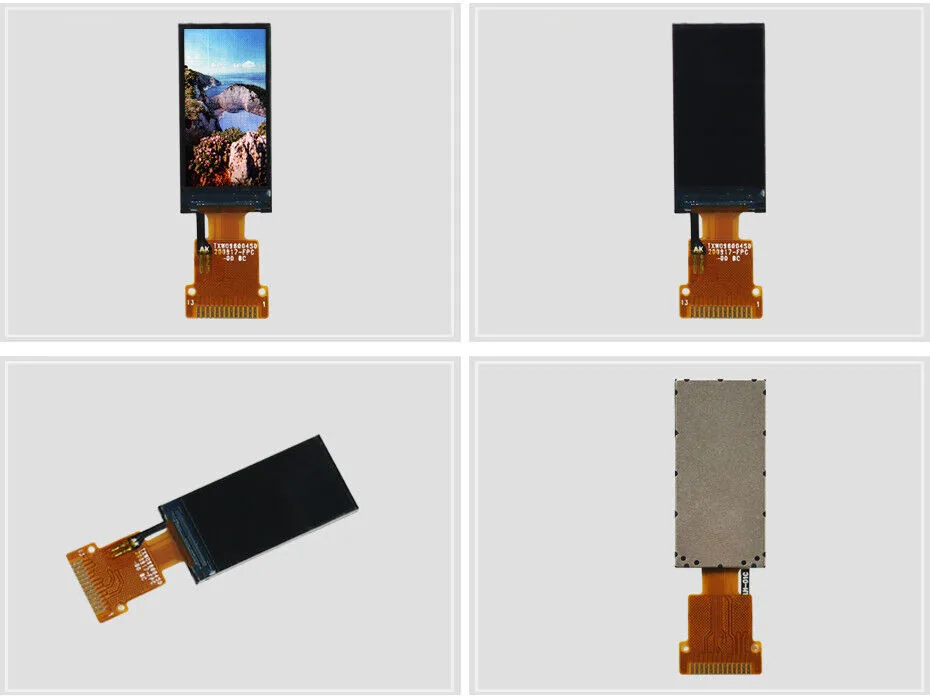

Detail photos
What this specification means in practice
IPS glass keeps colour and contrast stable from any angle, which matters when the operator does not look at the panel straight on - wall-mounted HMIs, instruments read from above, shared displays.
350 cd/m² is the bracket most industrial enclosures need: readable under workshop lighting and near a window, without the power draw of a sunlight-readable backlight.
SPI keeps the wiring to four or five lines, which is why it dominates small colour displays on 32-bit MCUs. The trade-off is refresh rate on larger resolutions.
Operating range -20°C to +60°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
