10.1" IPS TFT LCD module, 800×1280, MIPI
- Model
- JM-PT134-01
- Size
- 10.1"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PT134-01, built in our Shenzhen plant - 550 cd/m² brightness, -10°C to +50°C operating range, 9881 driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PT134-01 |
|---|---|
| Screen size | 10.1" |
| Resolution | 800×1280 |
| Display type | IPS |
| Interface | MIPI |
| Brightness | 550 cd/m² |
| Colours | 16.7M |
| Touch panel | selectable |
| Driver IC | 9881 |
| Driving voltage | 12.8V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 228.6(W) X 143(H) X 2.60(D) Mm |
| Active area | 135.360(W)x216.576(H) |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -20°C to +60°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Product description

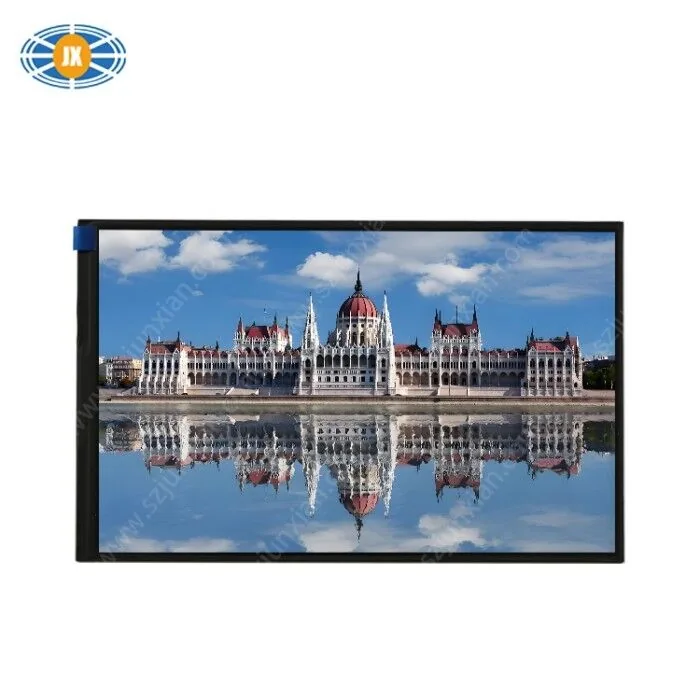

Custom 10.1 Inch TFT Color LCD Display High Luminance LCD Monitor With 800×1280 Pixels MIPI Interface
Key Features & Advantages
10.1 - inch TFT color LCD with a resolution of 800×1280 Pixels, delivering clear and sharp visual content.
Utilizes MIPI interface for efficient data transmission. The LCD size is 228.6 (W) x 143(H) x 2.60(D) mm and visual area is 135.360(W)x216.576(H), providing a proper display area for various applications.
Surface luminance of 550cd/m2 ensures bright display. IPS display type offers excellent viewing experience with “ALL 0'CLOCK” perspectives, ensuring consistent color and clarity from different angles.
Touch screen is selectable to meet different user needs. Operating temp ranges from - 10°C to + 50°C and storage temp from - 20°C to + 60°C, suitable for common environment conditions. LED lifetime of 40,000 Hours ensures long - term stable use.
(5) Color & Compliance
Displays 16.7M colors for rich and vivid visual effects.Compliant with REACH & RoHS, guaranteeing quality and environmental safety.

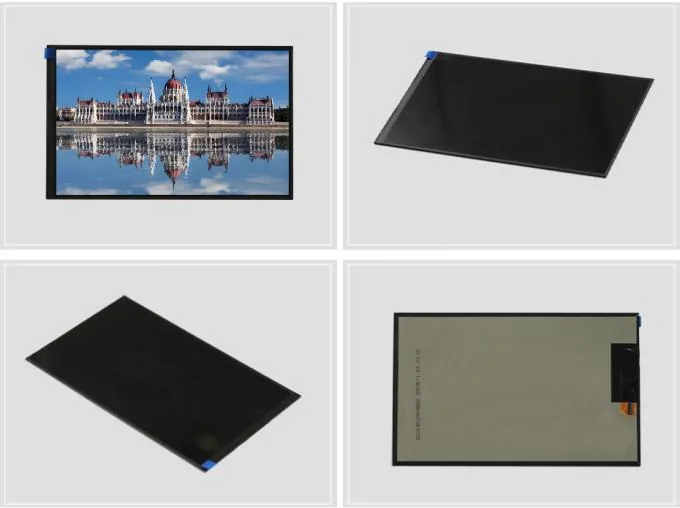

Detail photos
What this specification means in practice
IPS glass keeps colour and contrast stable from any angle, which matters when the operator does not look at the panel straight on - wall-mounted HMIs, instruments read from above, shared displays.
At 550 cd/m² this is one of our sunlight-readable panels. It stays legible on outdoor equipment, charging piles and vehicle-mounted terminals, at the cost of a higher backlight current - budget for it in battery-powered designs.
The MIPI DSI interface carries high resolution over few wires, but it needs a host SoC with a DSI controller - most 8-bit MCUs cannot drive it. Check your processor before choosing this variant.
Operating range -10°C to +50°C is a commercial specification. For unheated outdoor use ask for the wide-temperature version of this size.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
