Industrial TFT LCD Screen 240x320 Wide Viewing Angle HD LCD Monitor
- Model
- JM-PT127-01
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PT127-01, built in our Shenzhen plant - 250 cd/m² brightness, -20°C to +70°C operating range, ST7789 driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PT127-01 |
|---|---|
| Resolution | 240×320 |
| Display type | TN |
| Interface | 4SPI |
| Brightness | 250 cd/m² |
| Colours | Normally White |
| Touch panel | Touch-screen And No Touch Screen For Optional |
| Driver IC | ST7789 |
| Driving voltage | 3.3V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 42.72mmX62.26mmX2.45mm |
| Active area | 36.72X48.96mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
High-Performance LCD Display Industrial TFT LCD Screen With Wide Viewing Angle HD LCD Monitor
Key Features & Advantages
(1) High-Quality Visual Performance
2.4-inch display with 240x320 QVGA resolution and 262K color support ensures sharp, vibrant visuals.
12 o'clock viewing angle delivers clear front-of-screen visibility for optimal user interaction.
250 cd/m² brightness and 250:1 contrast ratio provide reliable readability in industrial environments.
(2) Industrial-Grade Reliability
Operates seamlessly in -20°C to 70°C (operating) and -30°C to 80°C (storage) temperature ranges, suitable for harsh conditions.
Built with RoHS-compliant materials, ensuring environmental safety and regulatory compliance.
Withstands ESD protection (±2kV HBM/±8kV air), thermal shock, and humidity testing for durable performance.
(3)Easy Integration & Compatibility
Features a 4SPI interface and ST7789 driver for straightforward connectivity and stable operation.
Multiple 2.4-inch size variants available to meet diverse design requirements.
(4)Long - lasting and Safe
With an LED white - light backlight that has a lifespan of 40000 hours, it ensures long - term reliable use. Moreover, it complies with REACH and RoHS standards, which means it is RoHS-compliant and safe for both users and the environment.Attesting to its high - quality manufacturing process.

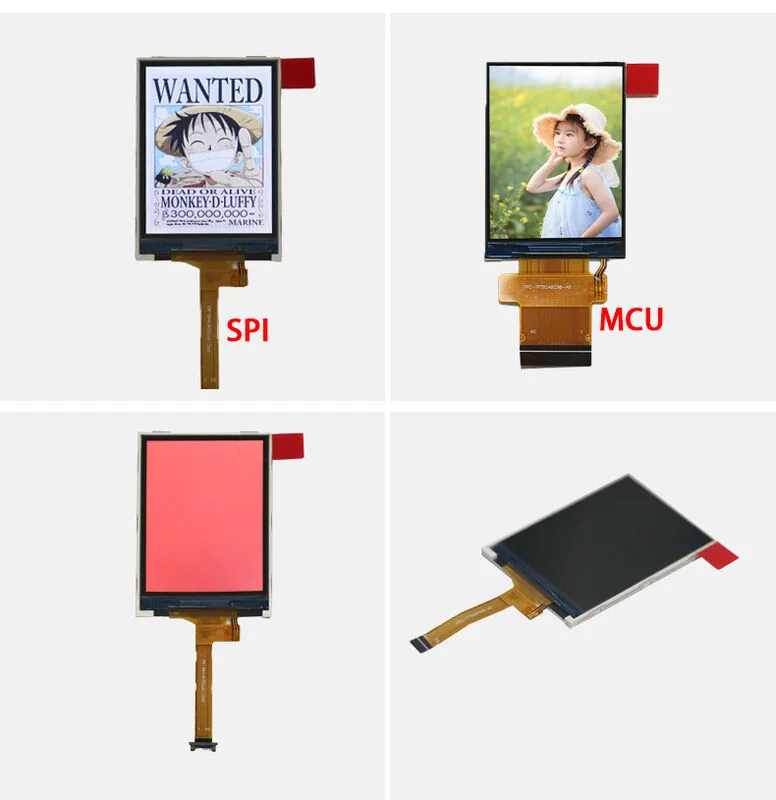

Detail photos
What this specification means in practice
TN glass is the cost-efficient choice with the fastest response. Contrast and colour shift once you move off the specified viewing direction, so it fits devices with a fixed operator position.
250 cd/m² suits indoor instruments and panel HMIs. If the device will sit outdoors or under direct light, ask us for the high-brightness version of this glass instead.
SPI keeps the wiring to four or five lines, which is why it dominates small colour displays on 32-bit MCUs. The trade-off is refresh rate on larger resolutions.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Industrial Automation & HMI
Machine panels and PLC front ends, where the module sits behind a cut-out in a metal enclosure and has to survive years of vibration.
Instrumentation & Metering
Bench and field instruments that show waveforms, curves or multi-line readings that a segment display cannot express.
Smart Home & Appliances
Control panels for appliances and thermostats, usually behind printed cover glass.
Handheld Terminals & POS
Portable terminals where the module size sets the whole enclosure dimension.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
