4.3" IPS TFT LCD module, 480×272, RGB
- Model
- JM-PT104-00
- Size
- 4.3"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PT104-00, built in our Shenzhen plant - 250 cd/m² brightness, -20°C to +70°C operating range. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PT104-00 |
|---|---|
| Screen size | 4.3" |
| Resolution | 480×272 |
| Display type | IPS |
| Interface | RGB |
| Brightness | 250 cd/m² |
| Contrast ratio | 350 |
| Colours | 16.7M |
| Touch panel | No Touch Screen Or Touch Screen Optional |
| Driving voltage | 3.3V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 105.5mm*67.2mm*3.0mm |
| Active area | 95.04X53.86mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
Custom 4.3-inch 480×272 TFT LCD Color Screen Module With16M Colors Full 85° Viewing Angles LCD Monitor
1. Key Features & Advantages
(1) Vivid Visual Experience
4.3-inch TFT-LCD with 480×272 resolution and 16 million color support delivers crisp images and rich color accuracy for immersive visuals.
Full-viewing angles (85°/85°/85°/85° at 3/6/9/12 o'clock directions) ensure clear visibility from any perspective, ideal for multi-user scenarios.
(2) Industrial-Grade Environmental Resistance
Operates reliably in extreme temperatures (-20°C to +70°C) with storage tolerance up to -30°C to +80°C, suitable for harsh industrial and outdoor environments.
RoHS-compliant design meets global environmental standards, ensuring safety and regulatory compliance.
(3) Compact & Versatile Hardware
Slim 105.5×67.2×3.0mm profile with RGB data interface offers easy integration into embedded systems and space-constrained devices.
(4) Robust Electrical Performance
Low-power 3.3V operation with wide logic voltage range (2.6-3.6V) ensures energy efficiency and compatibility with diverse systems.
Constant-current backlight driving and ±8KV air discharge / 4KV contact ESD protection enhance durability in high-static environments.

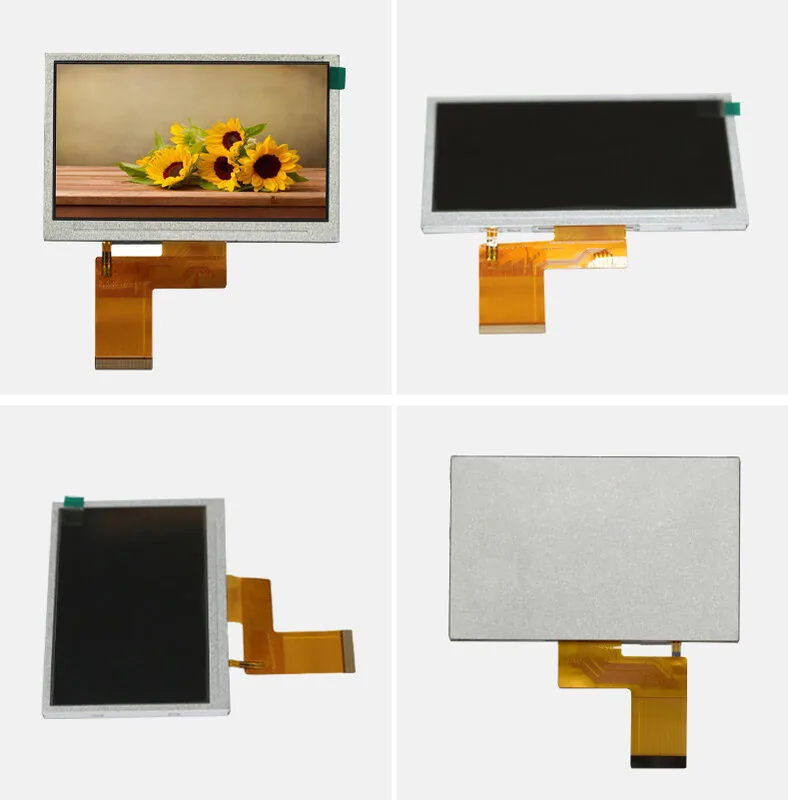

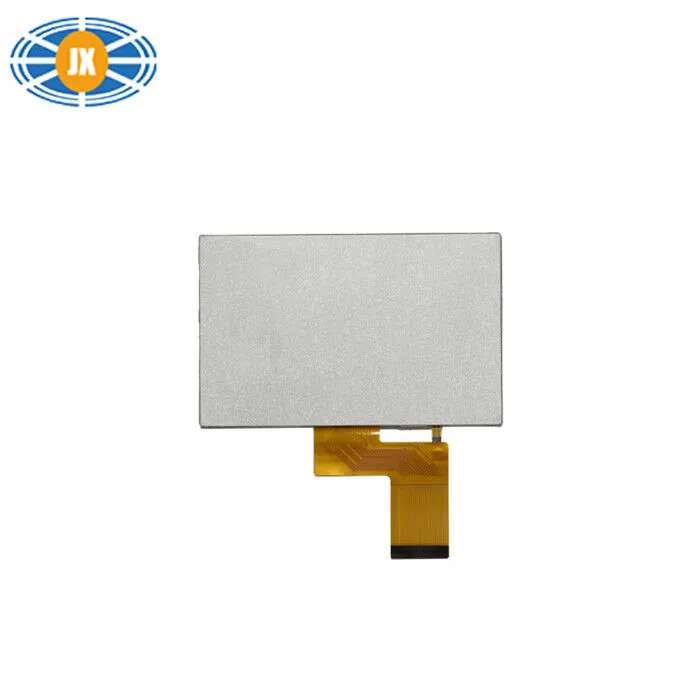

Detail photos
What this specification means in practice
IPS glass keeps colour and contrast stable from any angle, which matters when the operator does not look at the panel straight on - wall-mounted HMIs, instruments read from above, shared displays.
250 cd/m² suits indoor instruments and panel HMIs. If the device will sit outdoors or under direct light, ask us for the high-brightness version of this glass instead.
The parallel RGB interface needs a host with an LCD controller and around 20-28 I/O lines. It gives full frame-rate colour without a frame buffer IC, which is why it is standard on industrial ARM boards.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Industrial Automation & HMI
Machine panels and PLC front ends, where the module sits behind a cut-out in a metal enclosure and has to survive years of vibration.
Instrumentation & Metering
Bench and field instruments that show waveforms, curves or multi-line readings that a segment display cannot express.
Smart Home & Appliances
Control panels for appliances and thermostats, usually behind printed cover glass.
Handheld Terminals & POS
Portable terminals where the module size sets the whole enclosure dimension.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
