2.4" TN graphic LCD module, 240×320, MCU
- Model
- JM-PT095-02
- Size
- 2.4"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PT095-02, built in our Shenzhen plant, ST7789P3 driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PT095-02 |
|---|---|
| Screen size | 2.4" |
| Resolution | 240×320 |
| Display type | TN |
| Interface | 8-bit Parallel Interface (8080 MPU) |
| Colours | 262K |
| Driver IC | ST7789P3 |
| Driving voltage | 2.8V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 42.72 X 57.70 X 2.25mm |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
Core Features
(1) Brightness Performance:
With 1000 nits of surface luminance and 80% brightness uniformity (measured across 9 key points), it ensures consistent clarity under varying lighting conditions.
(2) Reliable Display Specifications:
Adopts transmissive, normally white a-TFT technology with ST7789P3 driver IC, paired with an 8-bit parallel 8080 MPU interface for easy connection to most microcontrollers.
(3) Optimized Visual Experience:
12 o’clock viewing direction and 250:1 contrast ratio (typical) deliver crisp details, while a fast response time (Tr+Tf = 30ms typical) ensures smooth image transitions.
(4)
Operates stably in temperatures from -20°C to 70°C and stores safely from -30°C to 80°C, with a minimum MTBF of 50,000 hours for long-term reliability.
Compliant & Customizable: Meets REACH & RoHS standards, with customizable cover glass options to fit specific application needs—no touch screen function for focused display performance.

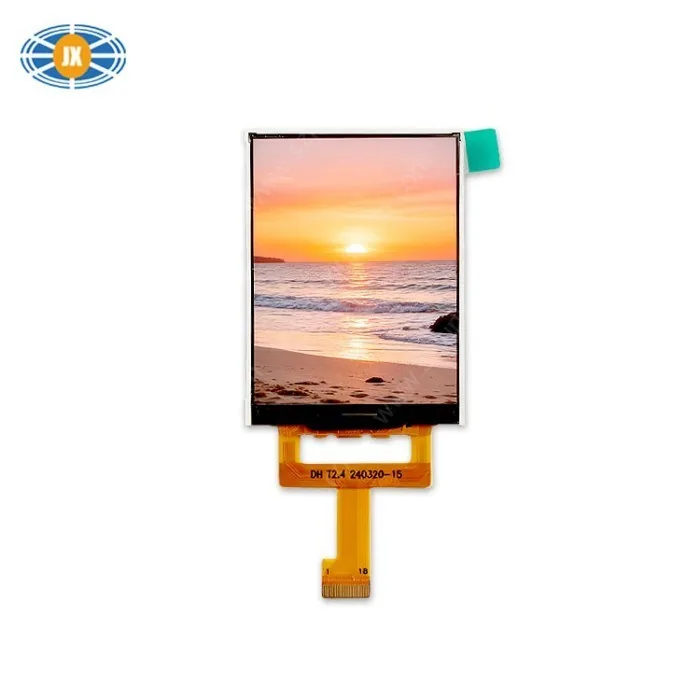

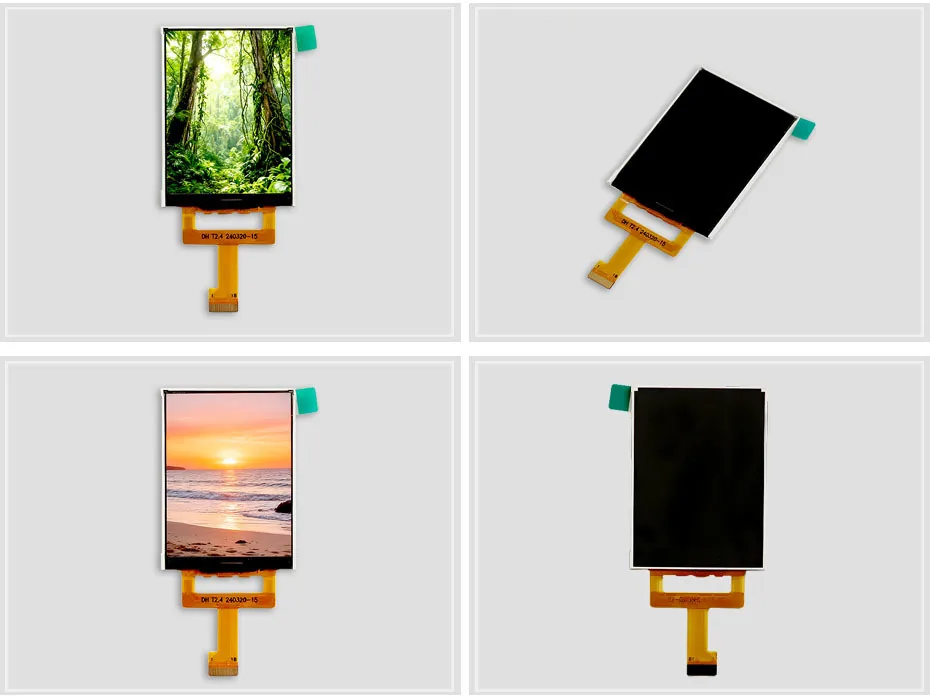

Detail photos
High Brightness TFT LCD Display—your ideal choice for applications demanding clear visibility and stable performance, whether indoors or outdoors. Boasting a 2.4-inch diagonal and 240RGB×320 dot-matrix resolution, this display delivers vivid, sharp image quality that stays striking even in bright environments, making it a standout for diverse electronic projects.
What this specification means in practice
TN glass is the cost-efficient choice with the fastest response. Contrast and colour shift once you move off the specified viewing direction, so it fits devices with a fixed operator position.
The parallel MCU (8080/6800) interface is the classic choice for microcontroller designs - simple timing, no dedicated LCD controller needed on the host.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
