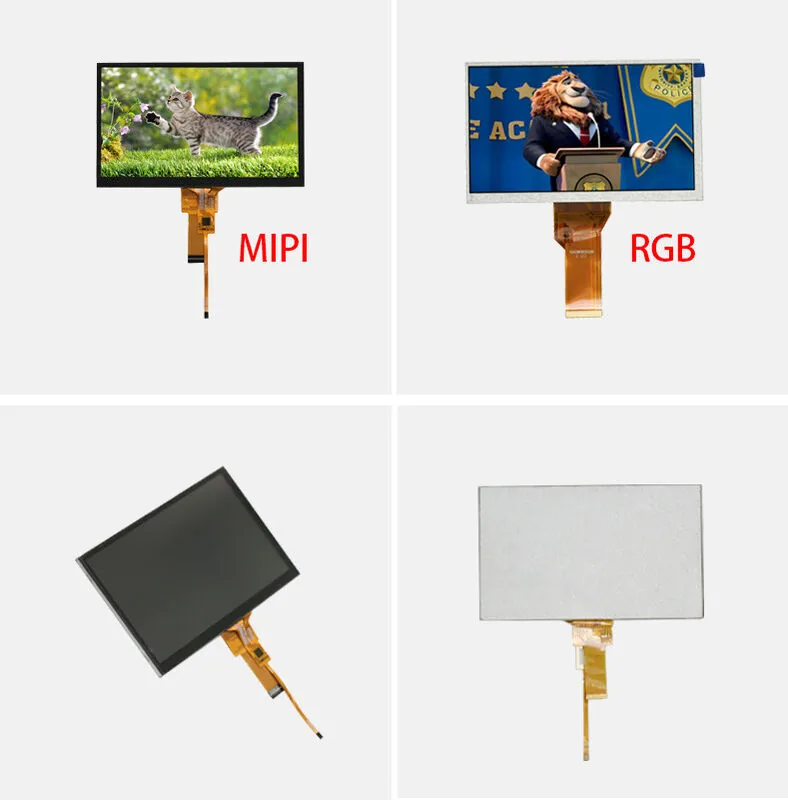

7" IPS TFT touch display module, 1024×600, MIPI
- Model
- JM- PT114- TI1024600 CML070
- Size
- 7"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM- PT114- TI1024600 CML070, built in our Shenzhen plant - 400 cd/m² brightness, -20°C to +70°C operating range. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM- PT114- TI1024600 CML070 |
|---|---|
| Screen size | 7" |
| Resolution | 1024×600 |
| Display type | IPS |
| Interface | 4-lane MIPI |
| Brightness | 400 cd/m² |
| Colours | Normally White |
| Touch panel | Selectable |
| Driving voltage | 3.3V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 165mmX100mmX5.0mm |
| Active area | 154.2144X85.92mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
Customized 7 inch TFT LCD Touch Screen Display Module with Full Viewing Angles and Adjustable Brightness from LCD display factory
Product Features and Advantages (1)High-Quality Visuals:
1024×600 (WXGA) resolution, 16.7M colors, 400 cd/m² brightness, 700:1 contrast ratio, and RGB vertical stripe pixel arrangement ensure sharp, accurate visuals in high-contrast environments.
IPS panel offers 80° viewing angles in all directions (CR≥10) for clear visibility from any perspective.
Robust Performance:
Wide operating temperature: -20°C to 70°C (working), -30°C to 80°C (storage).
4-lane MIPI interface for efficient data transmission.
(3) Compact & Flexible Design:
Slim size (165×100×5.0 mm) with 3.3V digital power supply, ideal for space-constrained systems.
Capacitive touchscreen (non-touch option available) for intuitive interaction.
Mounting holes and FPC connector enable easy integration.
(4) Reliability & Compliance:
Passes rigorous testing (thermal shock, vibration, ESD ±2kV/±8kV).
RoHS-compliant for environmental safety.
(5) Customization & Versatility:
Adjustable UI and functional settings for specific needs.
Suitable for industrial automation, medical devices, retail displays, and portable electronics across Europe, the US, and the Middle East.
What this specification means in practice
IPS glass keeps colour and contrast stable from any angle, which matters when the operator does not look at the panel straight on - wall-mounted HMIs, instruments read from above, shared displays.
400 cd/m² is the bracket most industrial enclosures need: readable under workshop lighting and near a window, without the power draw of a sunlight-readable backlight.
The MIPI DSI interface carries high resolution over few wires, but it needs a host SoC with a DSI controller - most 8-bit MCUs cannot drive it. Check your processor before choosing this variant.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Industrial Automation & HMI
Operator panels replacing membrane keypads - fewer mechanical parts to fail, and the UI can change in firmware.
Smart Home & Appliances
Wall panels and appliance fronts where the touch sensor is bonded behind decorated cover glass.
Energy Storage, BMS & EV Charging
Charging stations and inverter panels used outdoors with gloves on.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
7 Inch TFT LCD Display 450cd/M2 Industrial Custom TFT Display Viewing Angle
450cd/M2 TFT Capacitive Touch Screen , 7 Inch Capacitive Touch Panel For Industrial Devices
300cd/m2 High Brightness LCD Display 7 Inch 1024x600 For Automotive
7 Inch TFT Screen 1024x600 TFT Capacitive Touchscreen For Industrial / Outdoor
Questions about this model
What is the minimum order quantity for the JM- PT114- TI1024600 CML070?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
