1.28" IPS round TFT display, 240×240, RGB
- Model
- JM-PT106-00
- Size
- 1.28"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PT106-00, built in our Shenzhen plant - 350 cd/m² brightness, -20°C to +70°C operating range, GC9A01 driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PT106-00 |
|---|---|
| Screen size | 1.28" |
| Resolution | 240×240 |
| Display type | IPS |
| Interface | RGB |
| Brightness | 350 cd/m² |
| Contrast ratio | 1-100% |
| Colours | 16.7M |
| Touch panel | Without Touch Screen (Customizable) |
| Driver IC | GC9A01 |
| Driving voltage | 3.1V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 41.5mmx41.5mmx3.09mm |
| Active area | 35.60mmX37.74mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
1.28 Inch Round TFT LCD Display Custom touchscreen LCD Panel HD LCD Display For Wearables Tech
1. Product Features and Advantages
1.1 Compact and High - Resolution Design
This is a 1.28 - inch round TFT LCD display. It features a crisp HD resolution of 240×240 on an IPS panel, which provides wide viewing angles and sharp imagery in all orientations.
1.2 Advanced Interaction Capability
Equipped with a responsive PCAP (Projected Capacitive) touchscreen, enabling intuitive user interaction.(For the same model, the version without a touch screen is optional.)
1.3 Customizability
The cover glass dimensions are customizable to fit device design requirements, allowing for better integration into various products.
1.4 Flexible Connectivity Options
It has a default SPI interface, with the option to customize the protocol, which makes it adaptable to different system setups.
1.5 High - Performance Display in Different Lighting
1.6 Long - lasting Durability
The LED has a lifespan of 40,000 hours, making it suitable for continuous operation in rigorous environments.
1.7 Environmental and Safety Compliance
Meets REACH and RoHS directives, which means it is RoHS-compliant and safe for occupational use.

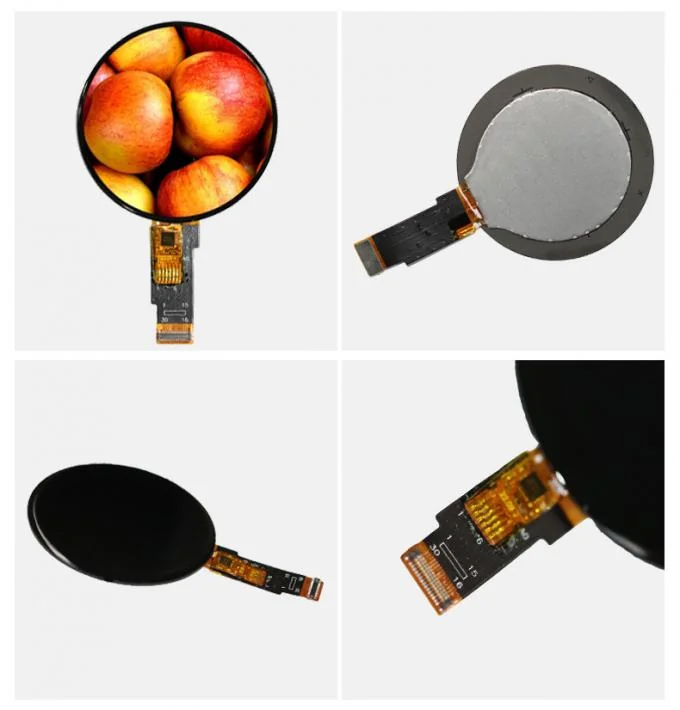

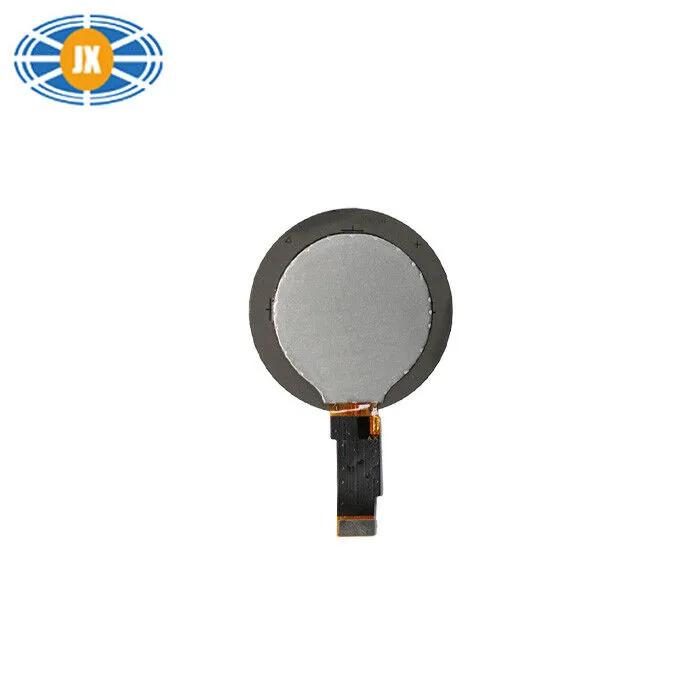

Detail photos
