3.4" IPS round TFT display, 480×272, RGB
- Model
- JM-PT106-00
- Size
- 3.4"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PT106-00, built in our Shenzhen plant - 300 cd/m² brightness, -20°C to +70°C operating range, NV3052CRGB driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PT106-00 |
|---|---|
| Screen size | 3.4" |
| Resolution | 480×272 |
| Display type | IPS |
| Interface | RGB |
| Brightness | 300 cd/m² |
| Colours | 16.7M |
| Touch panel | Selectable |
| Driver IC | NV3052CRGB |
| Driving voltage | 3.3V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 94.90mmx96.95mmx2.26mm |
| Active area | 87.60mmX87.60mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description

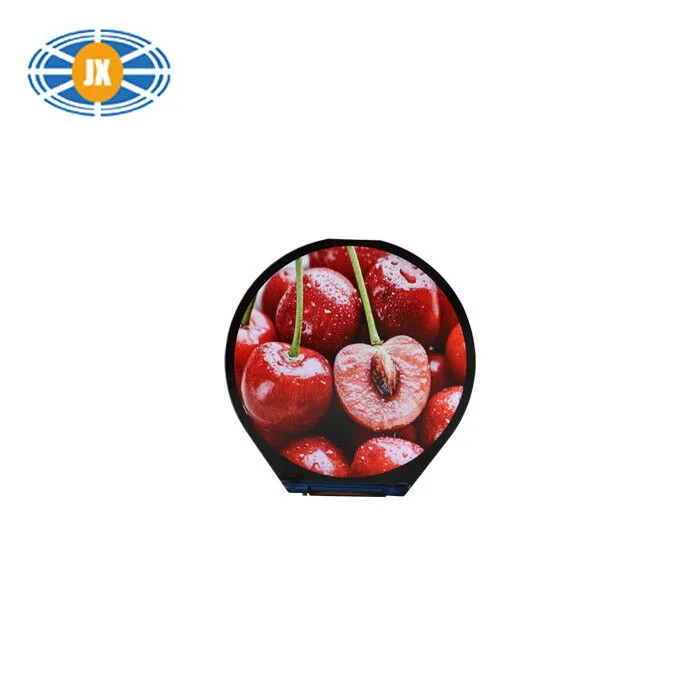

Custom 3.4 Inch Circular TFT Color LCD With 480×272 Pixels 16.7M Display Colors Round LCD Screen for Smartwatches
Product Features and Advantages (1) High - Resolution Color Display:
Boasts a 3.4 - inch TFT color LCD with a resolution of 480×272 pixels and 16.7M display colors, delivering vivid and detailed visual content, which is suited to applications that demand clear color presentation.
Utilizes IPS display technology with "ALL" perspectives, ensuring that the screen can be clearly viewed from any angle. This feature is highly beneficial for multi - user or shared - view scenarios.
With a surface luminance of 300cd/m², the LED white light backlight provides excellent visibility even in bright environments. Additionally, it has a long LED lifetime of 40,000 hours, reducing the need for frequent backlight replacements.
Offers a selectable touch screen, providing users with the flexibility to choose according to their specific application requirements, whether it is for interactive interfaces or simple display purposes.
Can operate within a temperature range of - 20°C to +70°C and be stored between - 30°C to +80°C. This makes it suitable for harsh industrial, outdoor, or extreme - environment applications.
Operates at a driving voltage of 3.3V, ensuring power - efficient performance, which is an advantage for battery - powered or energy - sensitive devices.
Comes with an RGB interface, allowing for straightforward integration into various systems, which simplifies the design and development process for engineers.
Is REACH & RoHS compliant. This ensures that the product is of high quality, safe, and RoHS-compliant, meeting the requirements of global markets.
This round 3.4 - inch TFT Color LCD is Your Ideal Display Solution!
What this specification means in practice
IPS glass keeps colour and contrast stable from any angle, which matters when the operator does not look at the panel straight on - wall-mounted HMIs, instruments read from above, shared displays.
300 cd/m² suits indoor instruments and panel HMIs. If the device will sit outdoors or under direct light, ask us for the high-brightness version of this glass instead.
The parallel RGB interface needs a host with an LCD controller and around 20-28 I/O lines. It gives full frame-rate colour without a frame buffer IC, which is why it is standard on industrial ARM boards.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Instrumentation & Metering
Round gauge replacements where a circular panel fits the existing bezel and dial design.
Smart Home & Appliances
Smart knobs and thermostats where a round screen matches the physical control.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
