1.3" OLED display module, 128×64, MCU
- Model
- JMP0121
- Size
- 1.3"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JMP0121, built in our Shenzhen plant - 120 cd/m² brightness, -40°C to +70°C operating range, T6963C driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JMP0121 |
|---|---|
| Screen size | 1.3" |
| Resolution | 128×64 |
| Display type | outstanding |
| Interface | 6800/8080 INTERFACE |
| Brightness | 120 cd/m² |
| Colours | Blue And White Color Option |
| Touch panel | selectable |
| Driver IC | T6963C |
| Driving voltage | 3.3V |
| Backlight | Black Background |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 34.5mmx23.0mmx1.42mm |
| Active area | 29.42mmx14.70mm |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -40°C to +85°C |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
Custom & OEM 1.3 Inch OLED LCD Display High Res Versatile Interface Oled Screen Module With SH1116 Driven
1. Product Features and Advantages
(1) Optimal Resolution: With a resolution of 128×64 pixels, it provides clear and sharp visual output, ensuring that every detail is vividly presented.
(2) Versatile Interface: The 6800/8080 interface offers flexibility for seamless integration with a wide range of devices, facilitating easy connection and operation.
(3) Compact and Precise Size: Measuring 34.5mmx23.0mmx1.42mm with a visual area of 29.42x14.70mm, it strikes a good balance between portability and sufficient display space.
(4) Reliable Control Driver: Powered by the SH1116 control driver, it guarantees stable performance and smooth display operations, reducing the risk of display glitches.
(5) Decent Luminance: The surface luminance of 120cd/m2 ensures that the display is easily viewable in various lighting conditions, from dim environments to moderately bright settings.
(6) Wide Temperature Tolerance: Operating within -40°C to +70°C and storable from -40°C to +85°C, it is highly adaptable to different environmental conditions, making it suitable for both indoor and outdoor applications.
(7) Adjustable Contrast: A contrast ratio range of 1 - 100% allows users to customize the display according to their preferences and usage scenarios, enhancing visual experience.
(8) Low - Voltage Operation: Requiring only 3.3V driving voltage, it is energy - efficient, reducing power consumption and making it ideal for battery - powered devices.
(9) Distinctive Display Color: The black background with blue letters provides high contrast and a unique visual aesthetic, making the displayed content stand out.
(11) Certified Quality: And compliant with REACH and RoHS regulations, it ensures high - quality manufacturing and environmental friendliness.

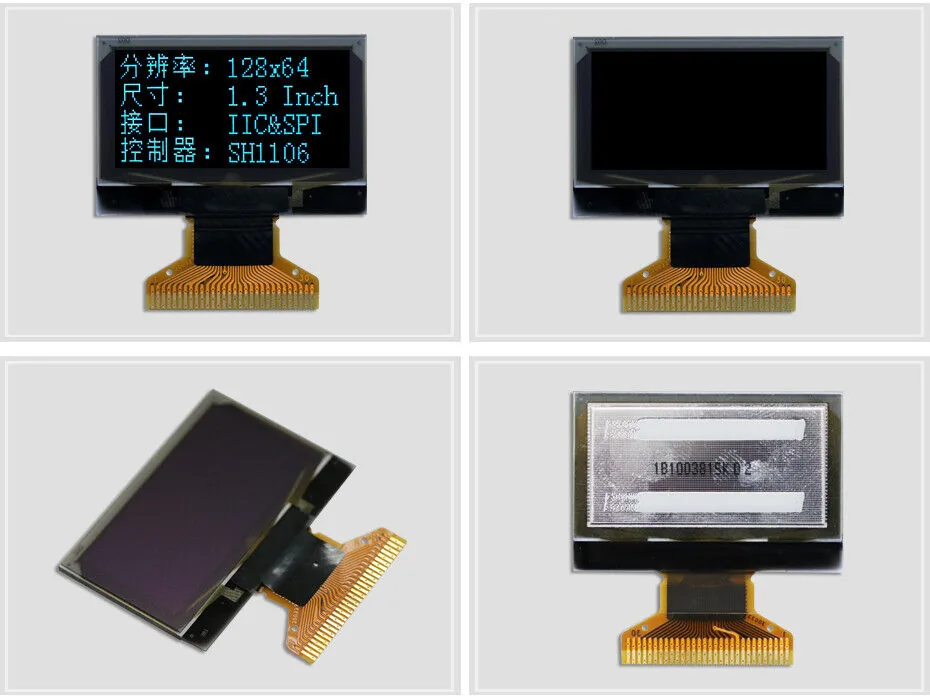

Detail photos
PS: This 1.3-inch OLED LCD display module is available in blue and white color options
What this specification means in practice
120 cd/m² is an indoor, low-power specification - typical for battery meters and handheld instruments where runtime matters more than brightness.
The parallel MCU (8080/6800) interface is the classic choice for microcontroller designs - simple timing, no dedicated LCD controller needed on the host.
Operating range -40°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Handheld Terminals & POS
Battery-powered handhelds - an OLED lights only the pixels it needs, so a mostly dark screen draws very little.
Instrumentation & Metering
Small readouts needing wide viewing angle and high contrast in a few square centimetres.
Smart Home & Appliances
Smart locks, chargers and small appliances where the display is a status window, not a UI.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
High Resolution TFT Display 240x240 1.3 Inch LCD Display 300cd/m2
1.3 Inch OLED Display Module 128x64 160° Viewing Angle Lcd Monitor With SH1106G Driver
1.3-Inch Monochrome OLED Screen – SSD1306 Driver & Versatile Parallel/SPI/I²C Interfaces for MCU Systems
3 Inch Graphic LCD Display 3.3V Sunlight Readable LCD Display 128x64
Questions about this model
What is the minimum order quantity for the JMP0121?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
