4.3" STN graphic LCD module, 192×64
- Model
- JM19264C
- Size
- 4.3"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM19264C, built in our Shenzhen plant - 200 cd/m² brightness, -20°C to +70°C operating range, NT7108 driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM19264C |
|---|---|
| Screen size | 4.3" |
| Resolution | 192×64 |
| Display type | Yellowish Green/STN |
| Brightness | 200 cd/m² |
| Colours | Yellowish Green Blue |
| Touch panel | Customizable |
| Driver IC | NT7108 |
| Driving voltage | 5.0V |
| Backlight | Yellow-green Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 130.0mmx65.0mmx12.5mm |
| Active area | 104.0mmx39.0mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Product description
1
Custom & OEM Industrial-Grade Compact 192x64 Monochrome LCD Display with Adjustable Backlight
1. Product Features and Advantages
(1) Compact & Space-Efficient Design:
With dimensions of 120×62×12.5mm and a clear view area of 104×39mm, ideal for space-constrained applications while delivering sharp 192×64 monochrome visuals.
(2) Stable Power Performance:
Operates at +5V (VDD) with an internal -15V negative voltage for LCD driving, ensuring consistent and reliable display performance.
(3) Easy Integration:
Features an 8-bit parallel data bus with 8 control lines, enabling seamless connectivity with CPUs for quick development in embedded systems.
(4)Wide Environmental Adaptability:
Supports operating temperatures from -20°C to +70°C (storage: -30°C to +80°C), making it suitable for industrial, outdoor, and harsh-environment applications.
(5) Customizable Visibility:
Offers three backlighting options (yellow-green/black, blue/white, gray/black) to enhance readability in varying lighting conditions, from low-light to bright environments.
(6)Advanced Control & Reliability:
Seven versatile display control commands (e.g., ON/OFF, address setting) and a built-in busy flag (BF) ensure precise data handling and stable operation.
(7) Flexible Content Management:
Adjustable display start line and page address configuration allow dynamic updates and efficient management of displayed content.

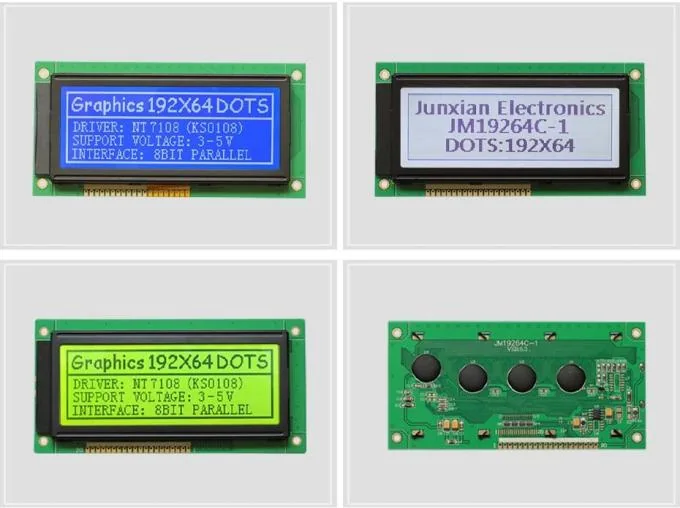

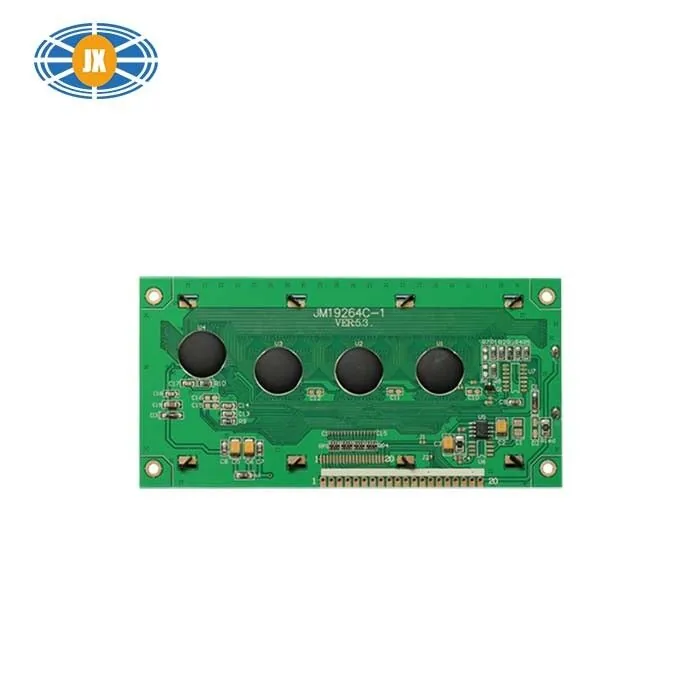

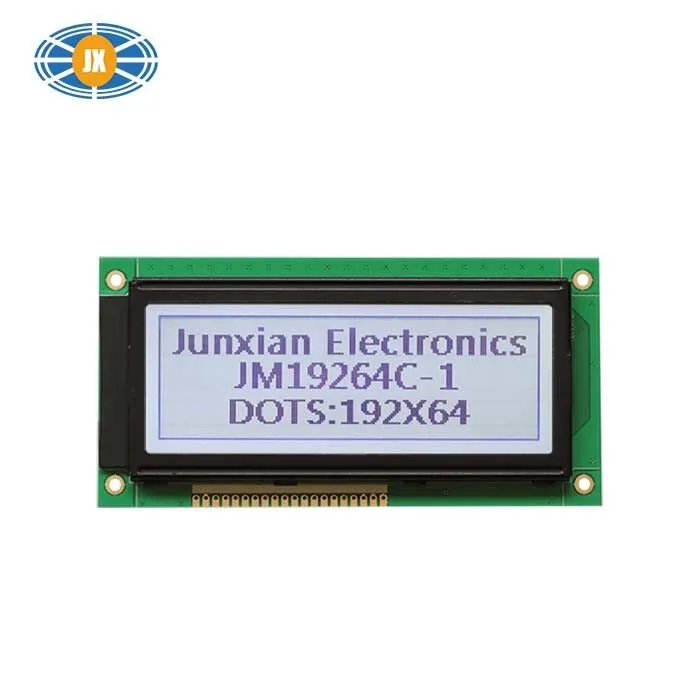

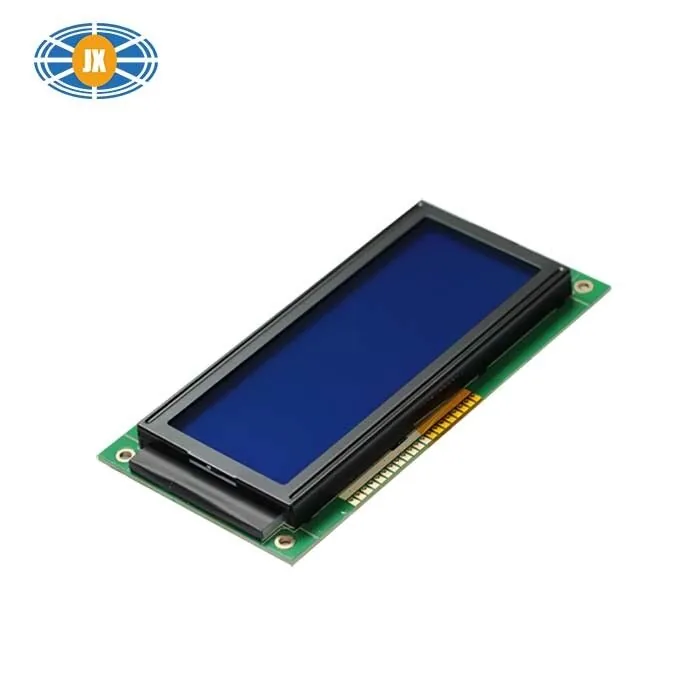

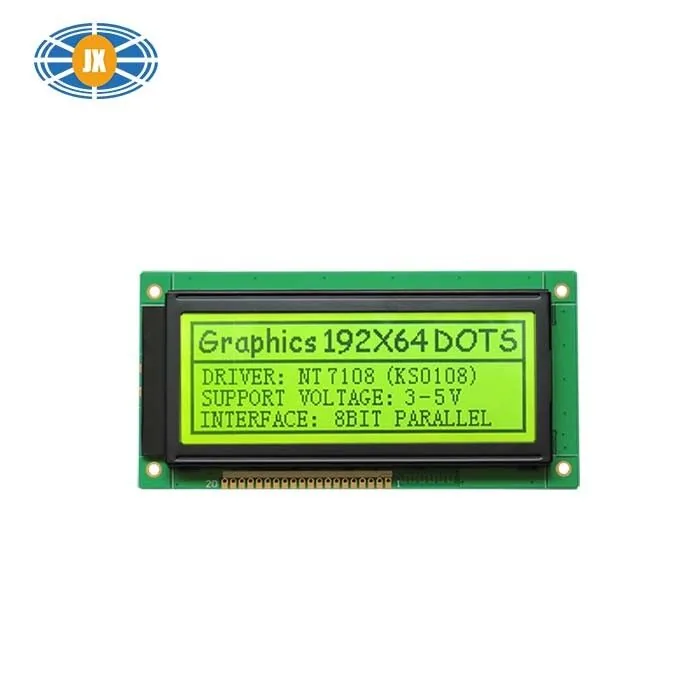

Detail photos
What this specification means in practice
TN glass is the cost-efficient choice with the fastest response. Contrast and colour shift once you move off the specified viewing direction, so it fits devices with a fixed operator position.
200 cd/m² suits indoor instruments and panel HMIs. If the device will sit outdoors or under direct light, ask us for the high-brightness version of this glass instead.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Instrumentation & Metering
Power, gas and water meters that must run for years on a battery and stay readable in daylight.
Industrial Automation & HMI
Simple machine readouts where colour adds cost but no information.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
4.3 Inch TFT LCD Display 480x272 4.3 TFT LCD Color Monitor With 16M Colors Full 85° Viewing Angle
4.3 Inch LCD Touch Screen 800×480 WVGA LCD Display 260cd/M2 With 24 Bit RGB Interface
4.3 Inch IPS LCD Display Touch Screen TFT Color LCD Panel With 480×272 Pixels OEM
4.3 Inch BMS Serial Port Capacitive LCD Touch Screen 5V Full View Clear LCD Display
Questions about this model
What is the minimum order quantity for the JM19264C?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
