3.5" IPS smart serial display module, 320×240, UART
- Model
- JM-LH011-TI320240NUL035
- Size
- 3.5"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-LH011-TI320240NUL035, built in our Shenzhen plant - 450 cd/m² brightness, -20°C to +70°C operating range. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-LH011-TI320240NUL035 |
|---|---|
| Screen size | 3.5" |
| Resolution | 320×240 |
| Display type | IPS |
| Interface | UART/RS485/CAN3 |
| Brightness | 450 cd/m² |
| Colours | 262K |
| Touch panel | No Touch Screen Or Touch Screen For Optional |
| Driving voltage | 5V |
| Backlight | LED White Light |
| Backlight lifetime | 40000 Hours |
| Outline dimension | 96.00x55.60x3.8mm |
| Active area | 69.36X52.27mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
Custom 3.5-inch Industrial TFT LCD Serial Port Display Plug-and-Play HMI with UART/RS485/CAN3 LCD screen
Product Features & Advantages
(1) Versatile Serial Port Integration:
Equipped with a proprietary command set and integrated high-speed MCU, enabling seamless compatibility with any UART-compatible motherboard.
Supports UART/RS485/CAN3 communication protocols, offering flexibility for diverse industrial and embedded systems.
(2) Plug-and-Play Rapid Development:
30-minute mastery and 3-day HMI design completion via intuitive Ul Editor-II drag-and-drop interface, ideal for rapid prototyping.
Virtual emulator eliminates hardware dependency for effortless debugging, reducing development costs and time.
(3) Customizable UI & Multilingual Support:
Real-time creation of custom user interfaces with 10+ control widgets, built-in keyboards, and multilingual text support for global applications.
Optional resistive/capacitive touchscreens and TN/IPS panels cater to diverse usability and environmental needs.
(4) Robust Industrial Specifications:
320×240 resolution and 450 cd/m² brightness ensure clear visibility in indoor and semi-industrial environments.
Operates reliably at -20°C~70°C, with a 40,000-hour LED lifespan and RoHS/REACH compliance for long-term durability.
(5) Enhanced Connectivity:
Four onboard I/Os enable direct control of external devices, simplifying system integration for automation tasks.
Over-the-air (OTA) upgrades ensure long-term software compatibility and functionality updates.

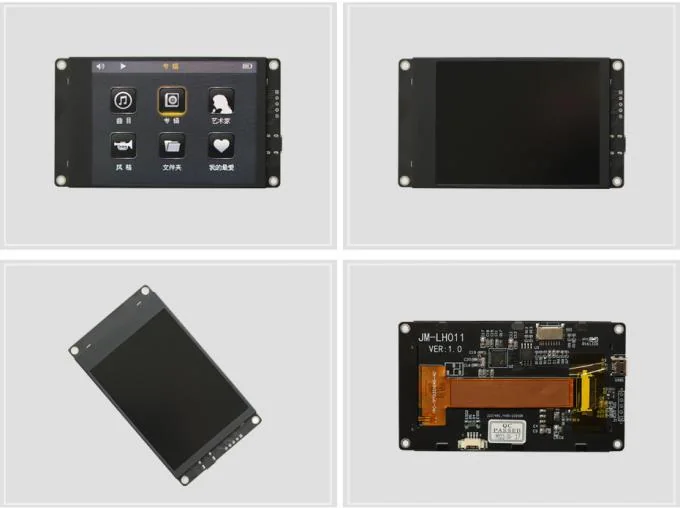

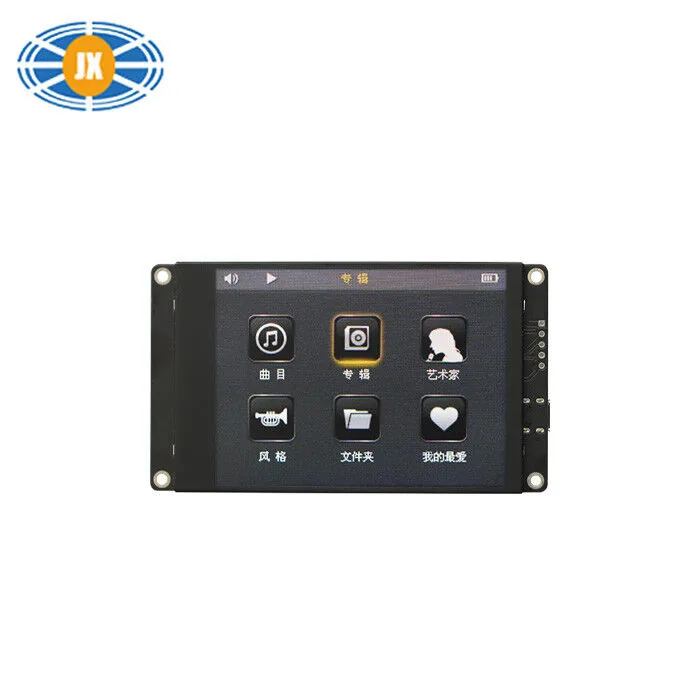

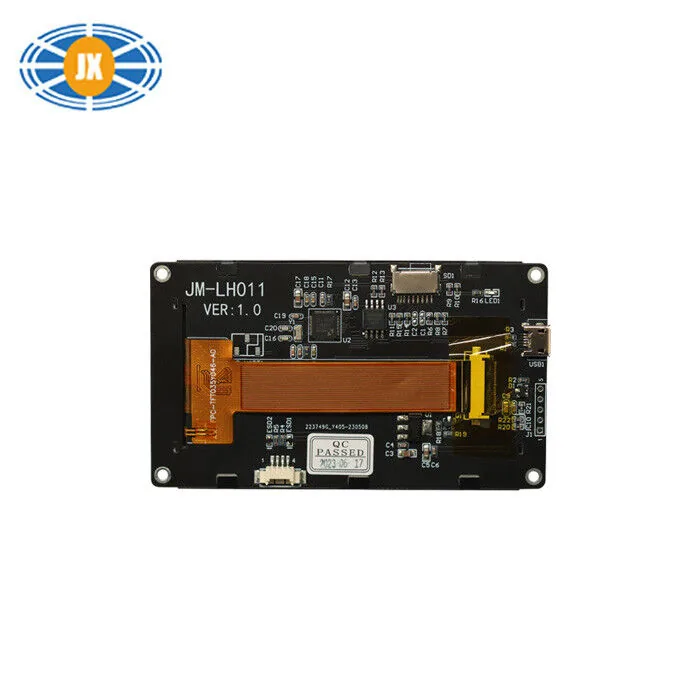

Detail photos
What this specification means in practice
IPS glass keeps colour and contrast stable from any angle, which matters when the operator does not look at the panel straight on - wall-mounted HMIs, instruments read from above, shared displays.
450 cd/m² is the bracket most industrial enclosures need: readable under workshop lighting and near a window, without the power draw of a sunlight-readable backlight.
The UART/serial variant carries its own controller and command set, so your MCU sends text and commands instead of driving pixels. It cuts firmware work substantially.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
