TN, STN & VA Segment LCD Display Custom Manufacturer
- Model
- customizable TN segmented display
- Size
- Custom - made to your drawing
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 3 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Custom TN / HTN / STN Segment LCD Modules, factory-made. Transmissive, reflective and transflective polarizers available. Custom segment pattern, size, interface and backlight. Sample MOQ: 3 pcs. Sample lead time: ~15 working days after spec freeze.
- LCD Technology: TN / HTN / STN monochrome segment LCD
- Optical Mode: Transflective / Reflective / Transmissive configurable
- Fully custom segment pattern for digits, icons and indicators
- Custom mechanical dimension, FPC layout and backlight
- Flexible interface options to match your main board
- Low power consumption, ideal for battery-operated equipment
| Model number | customizable TN segmented display |
|---|---|
| Resolution | Customizable |
| Display type | Normal Black Display/Transmissive |
| Interface | Customizable |
| Brightness | 500 cd/m² |
| Contrast ratio | 1-100% |
| Colours | Black/blue/white |
| Touch panel | customizable |
| Driving voltage | 3.0-5.0V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | Customizable |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Product description
Custom& OEM Multiple TN segment LCDs With Different Sizes from LCD Screen Manufacturer
TN Segment LCD Product Introduction
Designed for industrial and consumer applications, our TN segment LCDs feature a positive transflective design, ensuring clarity in natural light with optional LED backlighting (white/green/yellow-green/red/blue) for low-light use. Non-backlit models offer ultra-low power consumption, ideal for portable devices.
Product Sepcifications
(1)Transflective Design: Positive mode (clear characters on gray background) ensures high visibility in natural light, ideal for outdoor use.
(2) Optional LED Backlighting: Choose from white/green/yellow-green/red/blue LEDs for low-light environments; non-backlit models offer ultra-low power consumption for portable devices.
(3) Versatile Connectivity Options: Metal pins, conductive rubber strips, zebra paper, or FPC for easy integration into various systems.
(4)Wide Viewing Angle: ~140° (horizontal) / 120° (vertical) for flexible installation.
(5) Customizable Specifications: Operation temperature range (-10°C to 50°C), segment patterns, FPC configurations, and surface treatments (anti-glare/anti-fingerprint).
Product Advantages
International Compliance: Meets global standards for quality and safety.
Transflective design for sunlight readability
Versatile connectivity for easy integration
Customizable backlight intensity and color
Mature TN technology for cost-effective, stable performance

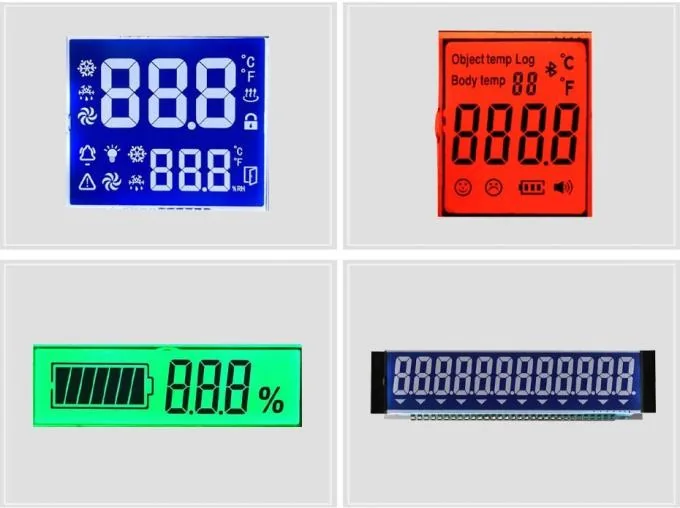

Detail photos
What this specification means in practice
At 500 cd/m² this is one of our sunlight-readable panels. It stays legible on outdoor equipment, charging piles and vehicle-mounted terminals, at the cost of a higher backlight current - budget for it in battery-powered designs.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Instrumentation & Metering
Meters and gauges showing a fixed set of digits and icons at the lowest possible power.
Smart Home & Appliances
Appliance panels where the custom icon layout is the product design.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
Questions about this model
What is the minimum order quantity for the customizable TN segmented display?
Samples are 3 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
