9" IPS TFT touch display module, 1024×600, RGB
- Model
- JM-PT144-00
- Size
- 9"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PT144-00, built in our Shenzhen plant - 300 cd/m² brightness, -20°C to +70°C operating range, A-Si TFT Active Matrix driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PT144-00 |
|---|---|
| Screen size | 9" |
| Resolution | 1024×600 |
| Display type | IPS, Normally Black, Transmissive |
| Interface | RGB-stripe |
| Brightness | 300 cd/m² |
| Colours | 262K |
| Touch panel | Customizable Touch |
| Driver IC | A-Si TFT Active Matrix |
| Driving voltage | 3.6V |
| Backlight | LED White Light |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 211.1mm×126.5mm×3.50mm |
| Active area | 196.6X114.15mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
Custom 9 Inch Durable Design LCD Display 1024×600 Touch Screen LCD Monitor For Industrial & Automotive
1.Key Features & Advantages
(1) IPS Visual Experience:
9.0-inch IPS panel with 1024×600 resolution and 262K colors (normally black, transmissive design) ensures sharp, color-accurate visuals with wide IPS viewing angles for consistent clarity from multiple directions.
(2) Flexible Design for Diverse Integration:
RGB-stripe interface and a-Si TFT active matrix driver enable seamless compatibility with standard systems. Optional touch screen support adds interactive functionality, expanding application possibilities.
(3) Long-Lasting & Efficient Operation:
300 cd/m² brightness guarantees clear readability, while a 40,000-hour LED backlight lifespan ensures durable performance. A 3.6V driving voltage balances power efficiency and display quality.
(4)Rugged Environmental Adaptability:
Operates in extreme temperatures (-20°C~+70°C) and stores in -30°C~+80°C, making it ideal for industrial, automotive, or outdoor use cases.

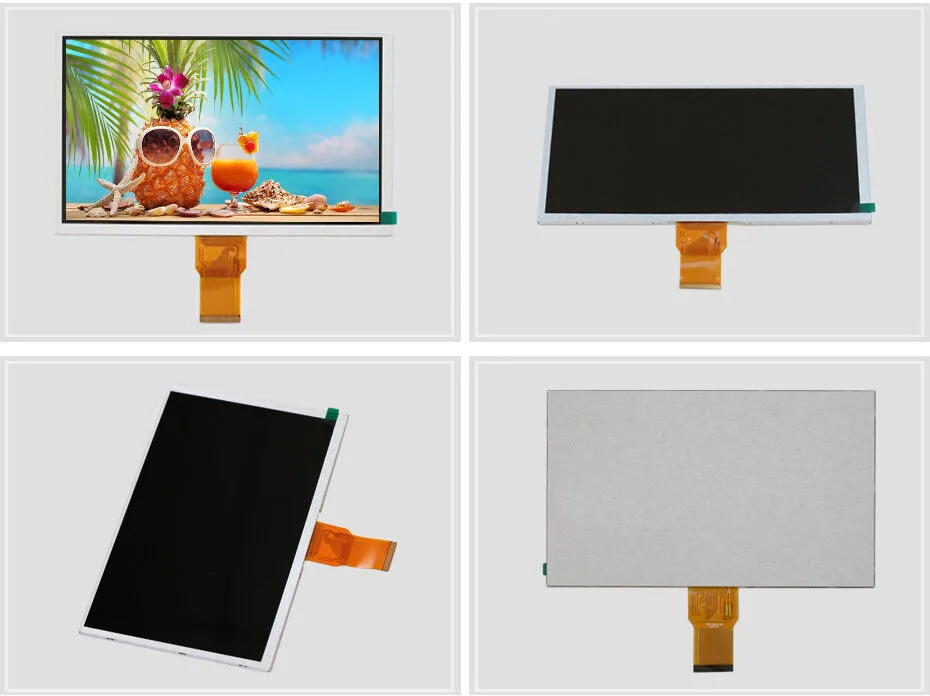

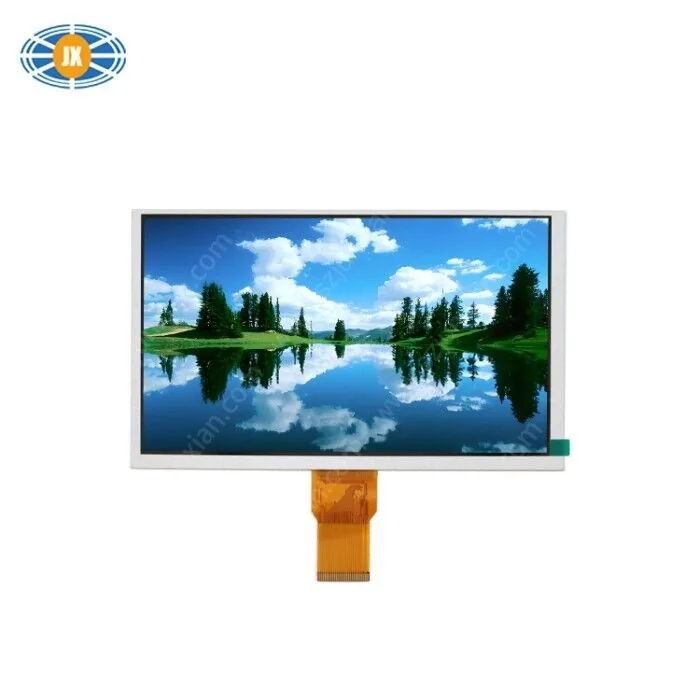

Detail photos
What this specification means in practice
IPS glass keeps colour and contrast stable from any angle, which matters when the operator does not look at the panel straight on - wall-mounted HMIs, instruments read from above, shared displays.
300 cd/m² suits indoor instruments and panel HMIs. If the device will sit outdoors or under direct light, ask us for the high-brightness version of this glass instead.
The parallel RGB interface needs a host with an LCD controller and around 20-28 I/O lines. It gives full frame-rate colour without a frame buffer IC, which is why it is standard on industrial ARM boards.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Touch is optional on this module. We bond capacitive or resistive panels to the same glass, so you can start without touch and add it on a later revision.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Industrial Automation & HMI
Operator panels replacing membrane keypads - fewer mechanical parts to fail, and the UI can change in firmware.
Smart Home & Appliances
Wall panels and appliance fronts where the touch sensor is bonded behind decorated cover glass.
Energy Storage, BMS & EV Charging
Charging stations and inverter panels used outdoors with gloves on.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
