3.2" FSTN graphic LCD module, 128×64, MCU
- Model
- JM-PL051-LG12864
- Size
- 3.2"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM-PL051-LG12864, built in our Shenzhen plant - 150 cd/m² brightness, -20°C to +70°C operating range, ST7567S driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM-PL051-LG12864 |
|---|---|
| Screen size | 3.2" |
| Resolution | 128×64 |
| Display type | STN/FSTN |
| Interface | 6800/8080/4-LINE |
| Brightness | 150 cd/m² |
| Colours | Blue/Gray |
| Driver IC | ST7567S |
| Driving voltage | 3.3V |
| Backlight | LED White /yellow |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 76.00X47.90X2.8mm |
| Active area | 72.0X39.5mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Product description

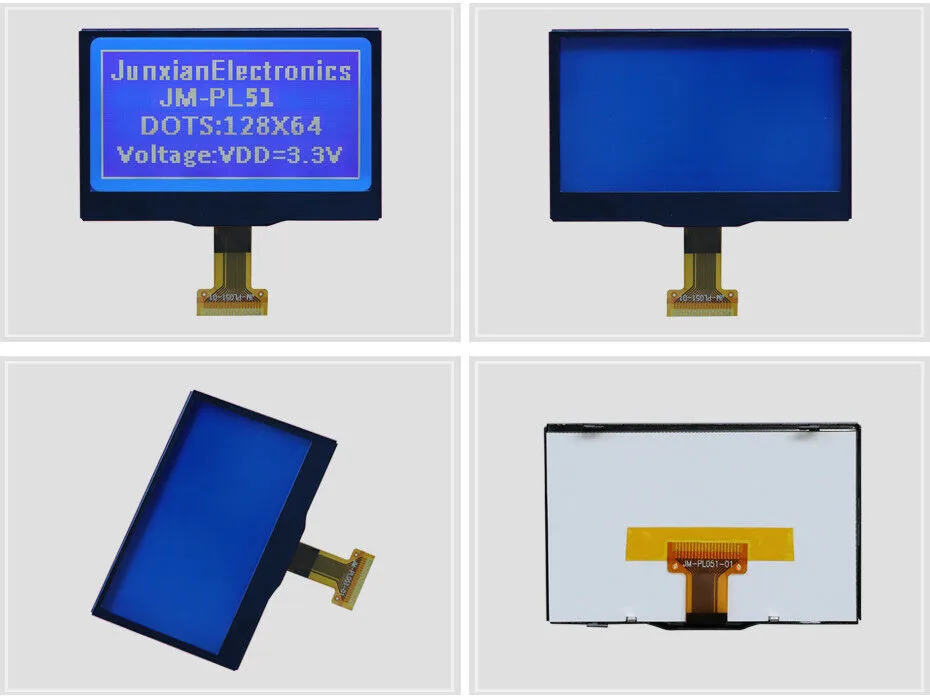

Custom & OEM 3.2-inch Monochrome LCD Screen With 128×64 Pixel LCD Module With ST7567S Driver IC Supports SPI from LCD manufacturer
Definition and Principle
COG Dot Matrix Display refers to a type of display technology that uses a Chip - on - Glass (COG) packaging method for dot - matrix - style displays. Here is a detailed introduction:
Principle
It consists of a matrix - arranged array of pixels, and each pixel can be independently controlled to display different colors or grayscale levels. By controlling the on - off state and brightness of these pixels, various images, text, and graphics can be presented.
Product Key Features and Advantages
(1)High-Clarity Visual Performance
3.2-inch monochrome LCD with 128×64 pixel resolution delivers sharp text and graphics for precise information display in industrial, medical, and consumer applications.
STN/FSTN positive display mode ensures low pixel crosstalk and stable optical performance, providing reliable visibility in various environments.
(2) Integrated Driver & Flexible Connectivity
Built-in ST7567S driver IC supports SPI serial interface (4-line) and 6800/8080 parallel interfaces, enabling seamless integration with microcontrollers and efficient data communication for rapid development.
(3) Compact & Slim Design
Ultra-compact dimensions (76.00×47.90×2.8mm) with a large visual area (72.0×39.5mm) maximize screen real estate in slim devices.
COG (Chip-On-Glass) technology reduces thickness and enhances integration density, ideal for space-constrained applications like wearables and handheld gadgets.
(4)Reliable Backlighting & Low Power
Selectable LED white/yellow backlight with 150cd/m² luminance ensures clear visibility in low-light conditions; display color options (blue/gray) enhance readability.
Low-power 3.3V DC operation minimizes energy consumption, suitable for battery-powered devices.
(5) Industrial-Grade Durability
Wide operating temperature range (-20°C to +70°C) and storage temperature (-30°C to +80°C) withstand harsh environments.
Long backlight lifetime (40,000+ hours) ensures sustained reliability for long-term use.
(6) Certified Compliance & Quality
- Fully RoHS and REACH compliant, meeting strict environmental standards for global markets.
What this specification means in practice
TN glass is the cost-efficient choice with the fastest response. Contrast and colour shift once you move off the specified viewing direction, so it fits devices with a fixed operator position.
150 cd/m² is an indoor, low-power specification - typical for battery meters and handheld instruments where runtime matters more than brightness.
The parallel MCU (8080/6800) interface is the classic choice for microcontroller designs - simple timing, no dedicated LCD controller needed on the host.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Instrumentation & Metering
Power, gas and water meters that must run for years on a battery and stay readable in daylight.
Industrial Automation & HMI
Simple machine readouts where colour adds cost but no information.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
3.2 Inch Character LCD Modules High Contrast LCD Display 100cd/m2 With Wide Viewing Angle
3.2 Inch TFT LCD Display , Compact QVGA TFT LCD Module With ST7789 Control Driver
3.2 Inch Industrial IPS TFT LCD Module Wide Viewing Angle IPS LCD Screen
3 Inch Graphic LCD Display 3.3V Sunlight Readable LCD Display 128x64
Questions about this model
What is the minimum order quantity for the JM-PL051-LG12864?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
