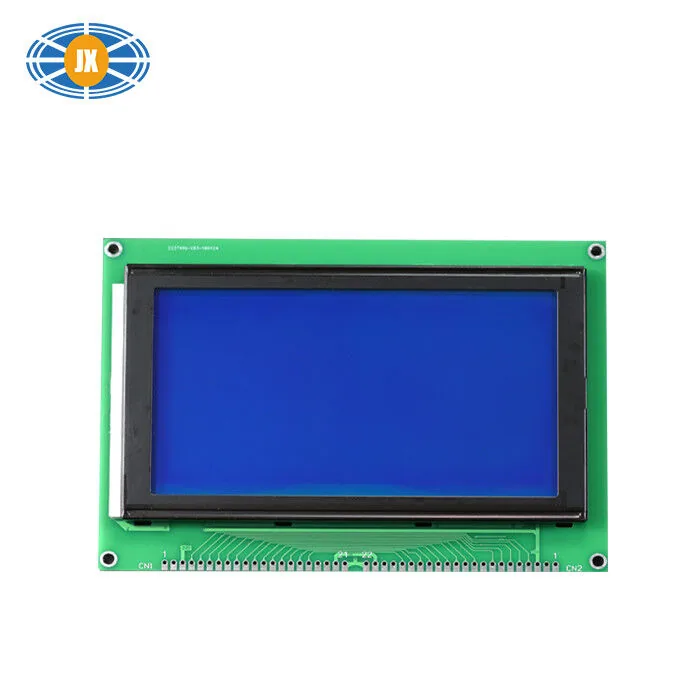

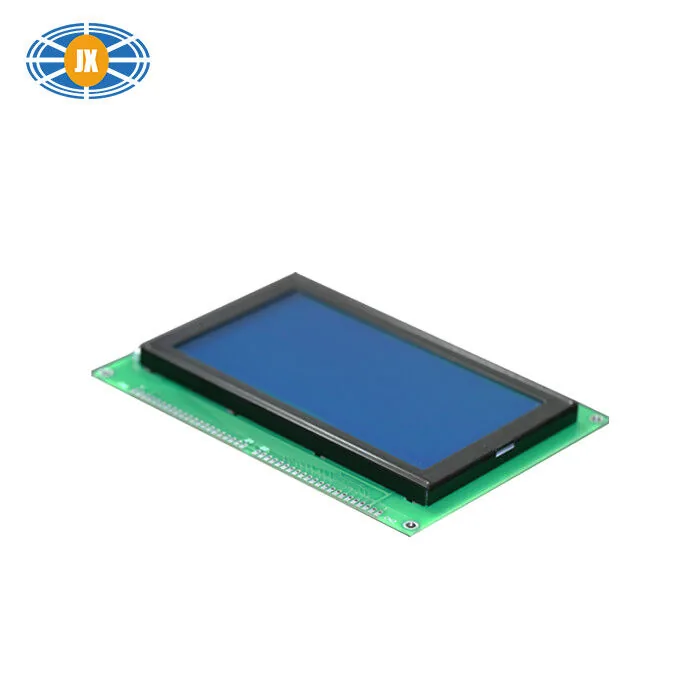

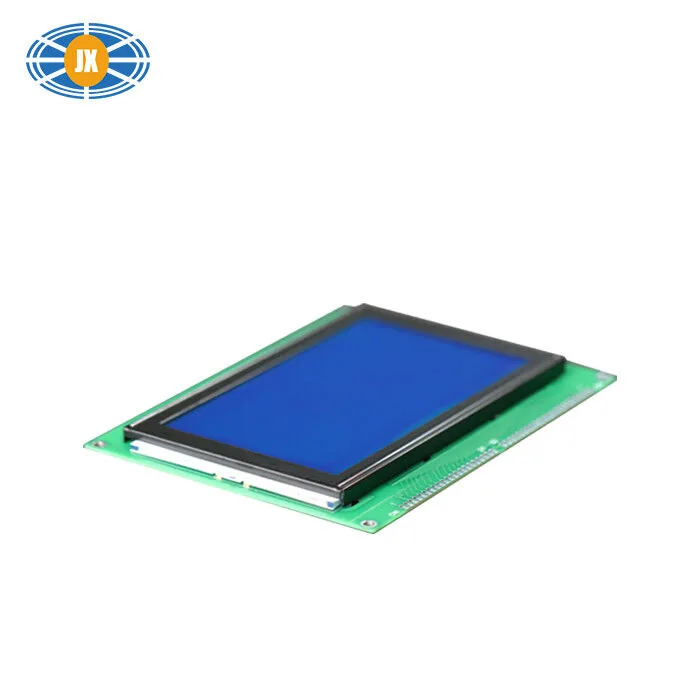

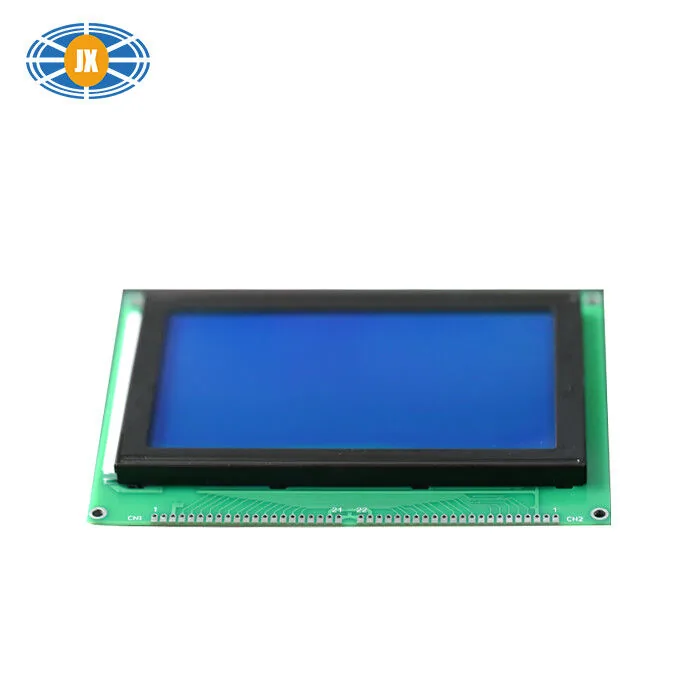

5.0" STN graphic LCD module, 240×128, MCU
- Model
- JM240128C09-GSBLWNG5
- Size
- 5.0"
- Brand
- Junxian Display
- Place of origin
- Shenzhen, China
- Sample MOQ
- 5 pcs
- Production MOQ
- 100 pcs (standard) / 1,000 pcs (fully custom)
- Lead time
- 10-20 days
- Payment
- T/T, L/C, PayPal
- Trade terms
- EXW, FOB Shenzhen, CIF
Specifications
Model JM240128C09-GSBLWNG5, built in our Shenzhen plant - 200 cd/m² brightness, -20°C to +70°C operating range, UC1698U driver IC. Sample MOQ is 5 pcs, production MOQ 100 pcs, and lead time 10-20 days once the specification is frozen.
| Model number | JM240128C09-GSBLWNG5 |
|---|---|
| Screen size | 5.0" |
| Resolution | 240×128 |
| Display type | STN |
| Interface | 8080-8bit |
| Brightness | 200 cd/m² |
| Colours | Blue/yellowish Green |
| Driver IC | UC1698U |
| Driving voltage | 3.3V |
| Backlight | LED White, Yellow |
| Backlight lifetime | 40,000 Hours |
| Outline dimension | 144.0×104.0×12.50mm |
| Active area | 114.0×64.0mm |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Compliance | REACH & RoHS Compliant |
Typical values at 25 °C. Tolerances, pin assignment and timing are in the datasheet — ask for it before locking your PCB layout.
Price depends on quantity, touch option and packaging. Send the quantity and we quote the same working day where possible.
Mechanical drawing
Outline, active area position, FPC route and pin pitch. Dimensions in millimetres. Check this against your enclosure opening before you commit the mechanical design — it is free to change here and expensive to change after tooling.
Drawing carried over from our previous catalogue; some annotations are in Chinese. Ask us for the current 2D drawing (DWG or PDF) and we will send it with the datasheet.
Product description
OEM & Custom 5.0-inch Monochrome LCD Screen With 240×128 STN Monochrome LCD For Industrial Control Panels
1. Product Specifications and Features
(1) Display Clarity & Ergonomics
240×128 - dot resolution STN (Blue) negative transmissive LCD ensures sharp visibility in diverse lighting.
6 o’clock viewing direction aligns with mainstream installation ergonomics.
(2) Backlight & Power Efficiency
White side - mounted LED backlight (5V DC, 150mA) provides stable, long - lasting brightness.
(3) Seamless Integration
8 - bit parallel data bus enables easy connection to MCUs; UC1698 IC guarantees reliable drive performance.
(4) Compact & Space - Friendly
Outline: 144×104×12.5mm (viewing area 114×64mm; active area 107.95×57.55mm) – ideal for space - constrained designs.
(5) Harsh Environment Ready:
Operating temp: -20°C~70°C; Storage temp: -30°C~80°C – suits industrial and outdoor - adjacent applications.
(6) Quality Certified

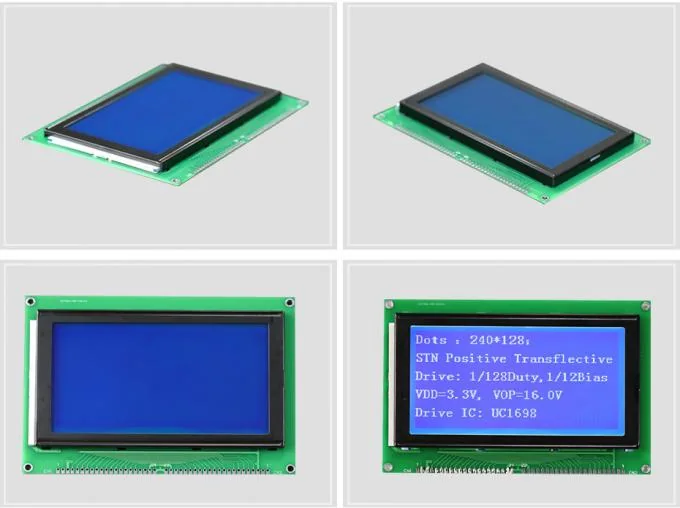

Detail photos
What this specification means in practice
TN glass is the cost-efficient choice with the fastest response. Contrast and colour shift once you move off the specified viewing direction, so it fits devices with a fixed operator position.
200 cd/m² suits indoor instruments and panel HMIs. If the device will sit outdoors or under direct light, ask us for the high-brightness version of this glass instead.
The parallel MCU (8080/6800) interface is the classic choice for microcontroller designs - simple timing, no dedicated LCD controller needed on the host.
Operating range -20°C to +70°C covers unheated cabinets, outdoor enclosures and cold-chain equipment. Standard commercial panels stop at 0 °C and go dark or slow in the cold.
Ordering and customisation
This model ships as a bare module by default. We commonly modify the FPC length and connector, change the backlight current, add a capacitive or resistive touch panel, or bond cover glass with your printing. Tell us the enclosure opening and the mounting method and we will confirm what can stay standard and what needs tooling.
Typical applications
Instrumentation & Metering
Power, gas and water meters that must run for years on a battery and stay readable in daylight.
Industrial Automation & HMI
Simple machine readouts where colour adds cost but no information.
How a customised order runs
Send the requirement
Size, resolution, interface, brightness, operating temperature, touch or no touch, and the annual quantity. A photo or drawing of the enclosure opening helps more than a long description.
We confirm feasibility and quote
You get a specific model number or a modification plan, with tooling cost and lead time stated separately from the unit price. Usually within one working day.
Sample and approval
Samples in 10-15 days from stock glass; custom glass or a new FPC adds tooling time. You approve dimensions, display quality and interface timing before mass production starts.
Production and shipment
10-20 days after specification freeze. Anti-static bag + foam tray + export carton, shipped DHL / FedEx / UPS express or by your forwarder. We keep the approved sample as the reference for every repeat order.
Related models
2.9 Inch COG Monochrome LCD Display 240x128 FSTN Dual Interface COG Dot Matrix Display
5V High Resolution Graphic Blue LCD Display 5.2 Inch Wide Viewing Angle Display
Industrial 240x128 Graphic LCD Module Blue Monochrome LCD Panel With STN FTTN Display
OEM ODM Custom LCD Monitor , Multiple TFT LCD Module With Turnkey Solutions
Questions about this model
What is the minimum order quantity for the JM240128C09-GSBLWNG5?
Samples are 5 pcs. Production MOQ is 100 pcs for this catalogue model and 1,000 pcs when the FPC, backlight or glass is modified.
How long is the lead time?
10-20 days for production quantities, 10-15 days for samples from stock glass. Custom tooling is quoted separately and confirmed in writing first.
Can this module be customised?
Yes - FPC length and pin order, connector type, backlight brightness and colour temperature, cover glass, touch panel and bonding method. See what is changeable.
Do you provide a datasheet and drawing?
Yes. Email hyd@szjunxian.com with the model number and we send the full datasheet, 2D drawing and, where relevant, the initial sample report.
Which interface should I choose for my board?
It depends on your host processor and target resolution. Our interface selection guide compares MCU, SPI, RGB, LVDS and MIPI by pin count, resolution ceiling and MCU load.
Packaging, shipping and trade terms
Packaging is anti-static bag + foam tray + export carton, shipped by DHL / FedEx / UPS express, air freight, sea freight. Trade terms EXW, FOB Shenzhen, CIF, payment T/T, L/C, PayPal.
Need this module with different parameters?
Most orders start from a catalogue model and change two or three parameters. Send us the differences you need and we will confirm feasibility, tooling and price.
