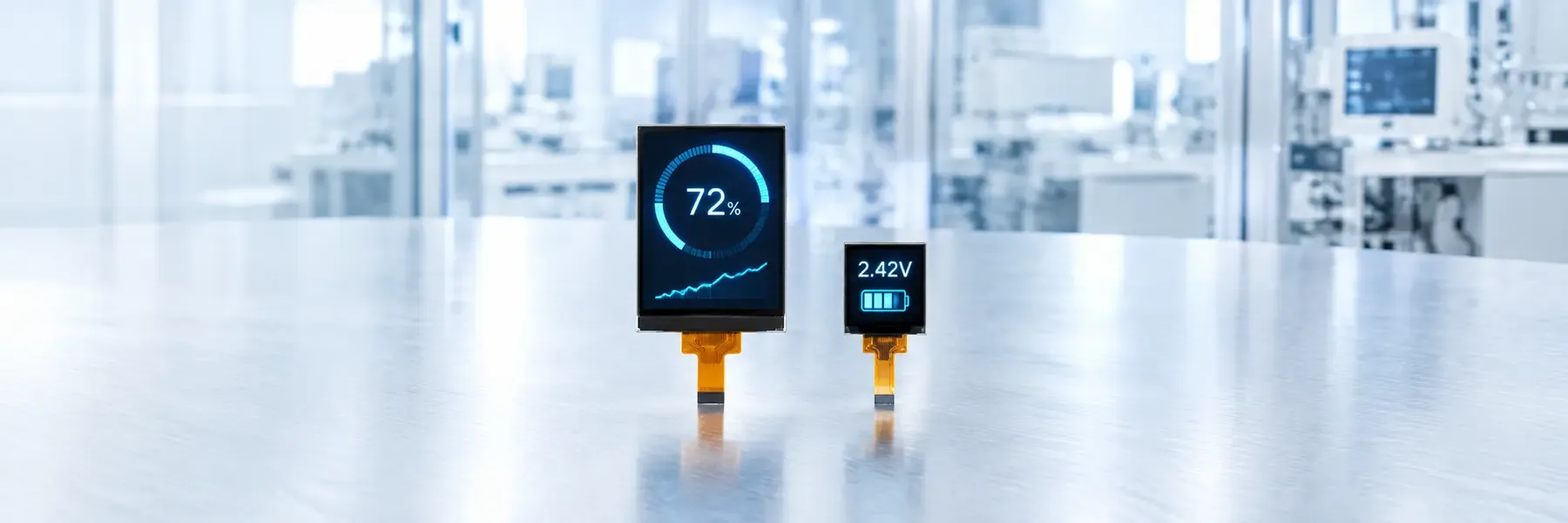

SPI LCD Display Modules
Four to five wires (clock, data, chip select, command/data, optional reset); the panel's own driver IC holds the frame buffer and the host only sends what has changed. It is the lowest pin count of any interface that still drives a colour TFT, which is why it dominates pin-starved and battery-powered designs.
Best fit
Best for MCUs with no LCD controller and a limited pin budget, at resolutions our own choose-a-module guide puts at roughly 320×240 and below before frame rate becomes the limiting factor - use the SPI frame rate calculator on our interface guide to check your own resolution and clock before committing.
Published SPI models
| Model | Size | Resolution | Category | Brightness | Touch |
|---|---|---|---|---|---|
| JM-PT137-00 | 3.2" | 240×320 | tft lcd display module | 300 cd/m² | No Touch Screen Or Touch Screen For Optional |
| JM-TFT032B002 | 3.2" | 240×320 | tft lcd display module | 400 cd/m² | Touch-screen And No Touch Screen For Optional |
| JM-PL054-00 | 3" | 160×160 | cog graphic lcd | 150 cd/m² | - |
| JM12864C08 | 3" | 128×64 | cog graphic lcd | 150 cd/m² | Without Touch Screen (Customizable) |
| JM240160C02 | 2.9" | 240×160 | cog graphic lcd | 150 cd/m² | - |
| JM16096C02 | 2.5" | 160×96 | cog graphic lcd | 150 cd/m² | - |
| JM-GD819 | 2.4" | 240×320 | tft lcd display module | 200 cd/m² | No Touch Screen Or Touch Screen For Optional |
| JM-PT095-01 | 2.4" | 240×320 | tft lcd display module | 350 cd/m² | Touch-screen And No Touch Screen For Optional |
| JM-PT086 | 2" | 240×320 | tft lcd display module | 250 cd/m² | Optional TP |
| JM-PT037 | 1.77" | 128×160 | tft lcd display module | 230 cd/m² | selectable |
| JM-PT037-01 | 1.77" | 128×160 | tft lcd display module | 200 cd/m² | No Touch Screen |
| JM-PT130-00 | 1.77" | 128×160 | tft lcd display module | 250 cd/m² | Without Touch Screen (Customizable) |
| JM-PO139-01 | 1.54" | 128×64 | oled display module | - | - |
| JM-PL024 | 1.5" | 128×32 | cog graphic lcd | 200 cd/m² | - |
| JM-PO158-01 | 1.3" | 128×64 | oled display module | - | - |
| JM-PT052-TI80160NSL0096 | 0.96" | 80×160 | tft lcd display module | 350 cd/m² | Touch-screen And No Touch Screen For Optional |
| JM-PT138-00 | 0.96" | 80×160 | tft lcd display module | 350 cd/m² | Without Touch Screen (Customizable) |
| JM-1602-06 | " | - | character lcd module | 150 cd/m² | - |
| JM-GD823-00 | " | 128×128 | tft lcd display module | 150 cd/m² | Selectable |
When SPI is not the right choice
Not the right choice for full-screen video or fast animation at larger resolutions - the bus becomes the bottleneck well before the panel does. Above roughly QVGA, an MCU-parallel or RGB interface will move data faster for the same clock effort.
SPI - questions
How many published SPI models do you have right now?
19 on the site today, but SPI is a standard option across our small-panel TFT and COG lines - we develop roughly 120 new models a year, so ask for your exact size and resolution before assuming it is not available.
What frame rate can I actually get over SPI?
It depends on resolution, colour depth and SPI clock - use the calculator embedded in our SPI frame rate guide to work it out for your numbers rather than assuming a figure. As a rule, partial redraw (updating only what changed) gets you much further than a full-frame refresh at any clock speed.
Does SPI need a display controller on my MCU?
No - the panel's own driver IC holds the frame buffer, which is exactly why SPI works on MCUs that have no display hardware at all.
